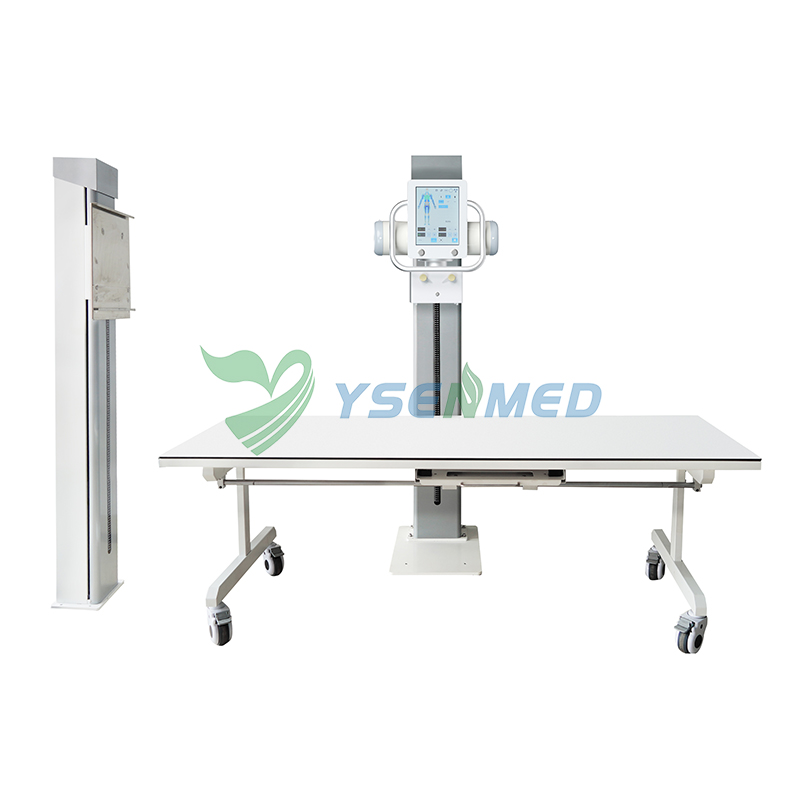

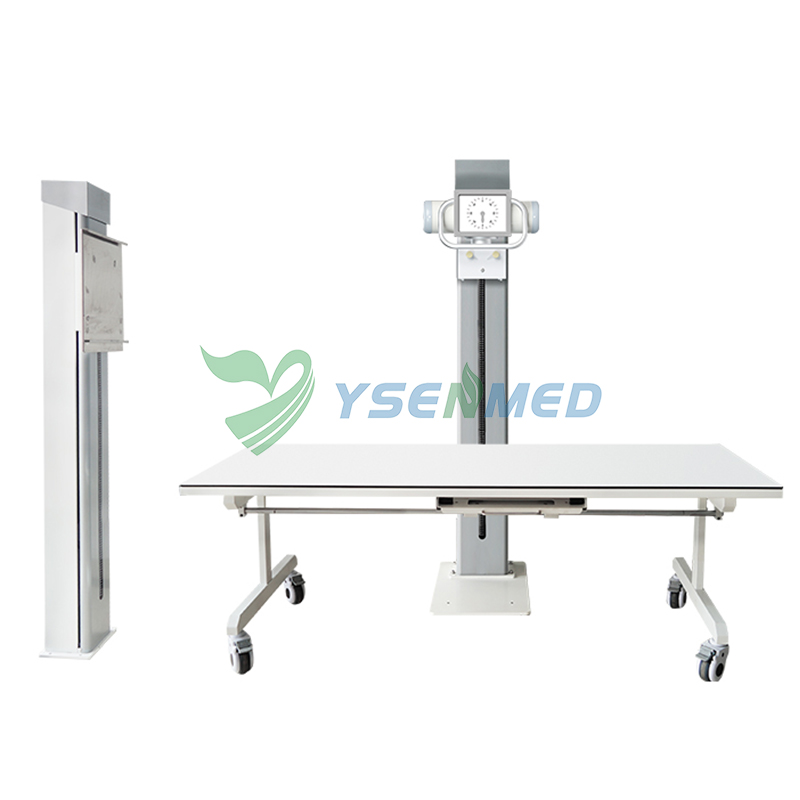

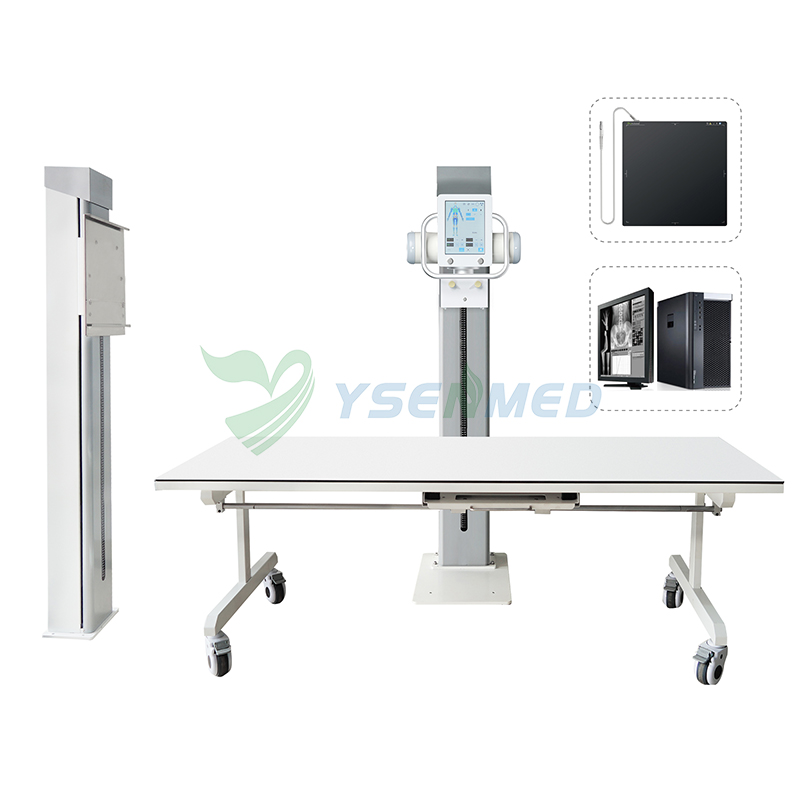

YSF32DR-B1 32KW Digital Radiography System. Powerful floor-mounted DR X-ray with a mobile table & 10.4" touch screen. High-quality full-body imaging for hospitals.
Introduction:
YSENMED digital radiography x-ray system is a general purpose system which applies to full-body parts radiography. The humanized and user-friendly design makes it easy to operate.With this DR system, YSENMED is committed to making digitalized radiography more accessible and affordable for clinicsand hospitals around the world.
Product Features:
10.4” color TFT touch screen
Simple floor-mounted tube column structure saves space

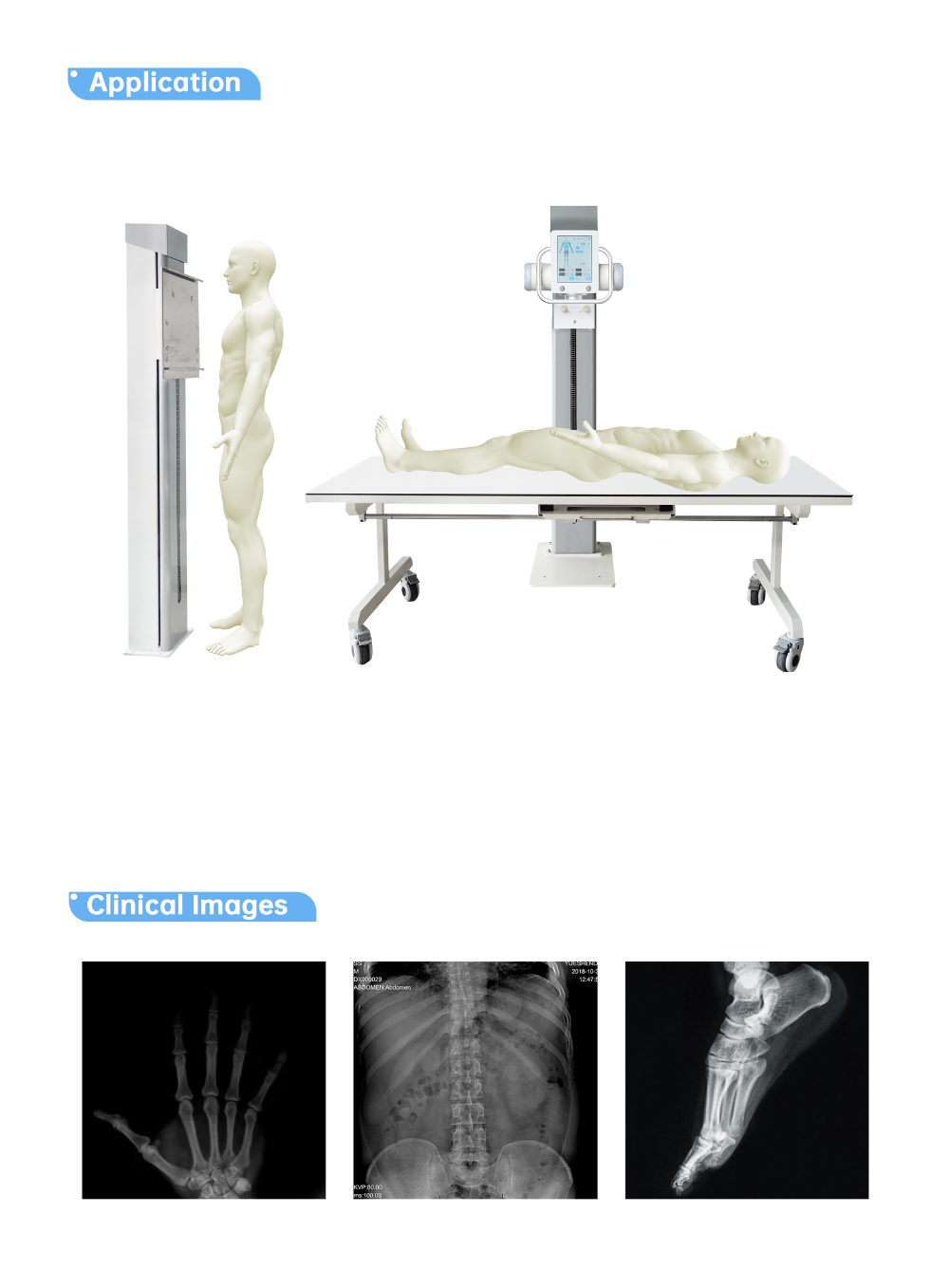

Support radiography of various positioning
Mobile radiography table with brakes
Easy installation & operation
Specifications:
Parameter:
YSF32DR-B1
Max.KW:
32KW
Power Supply:
50Hz/60Hz,20/32/50kW(220V/380V available),65kW&80kW(only 380V)
mA:
10~400
mAS:
0.1~320
KV:
40~125kV, stepping by 1kV
Exposure Time:
0.001~10s adjustable: stepping by 1ms
Focus:
Dual focus:1.0*1.0mm/2.0*2.0mm
Anode Speed & Heat Content:
2800rpm/150kHU
Max. Working Frequency:
220kHz±20%
Tube Movement:
Up & down lift, left & right rotation
Column:
Stationary
Radiography Table:
2000*730*695mm(mobile)
Bucky Stand:
Manual up & down

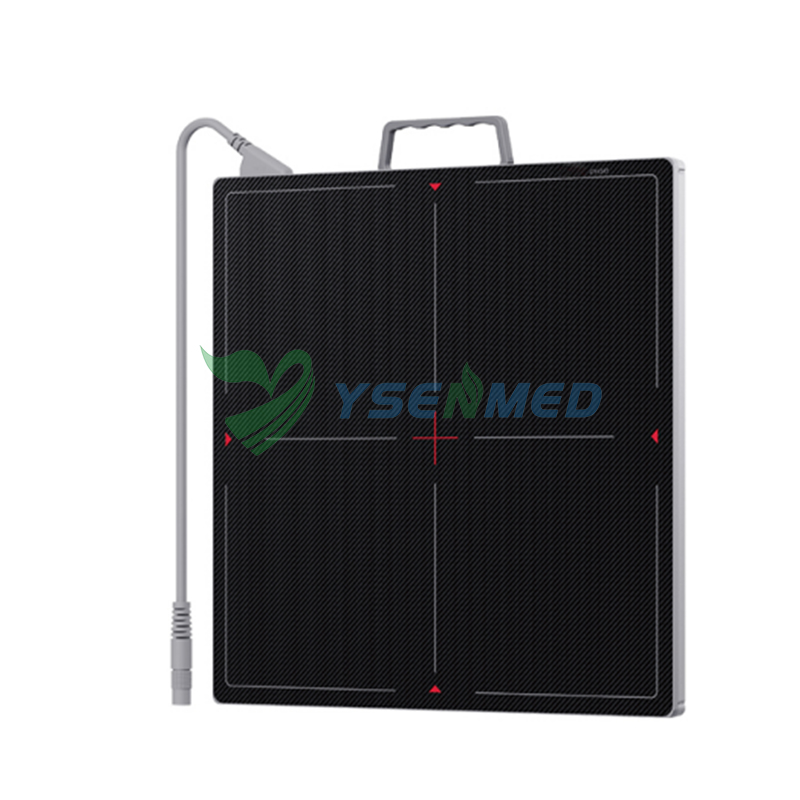

Detector Size:
17*17 inch
Pixel Resolution:
3072*3072
Pixel Pitch:
139um
A/D Conversion:
16bits
Spatial Resolution:
3.61p/mm
Size:
460*460*15mm
Interface:
Wired (Wireless is optional)
Software:
Professional medical software with multi-languages available

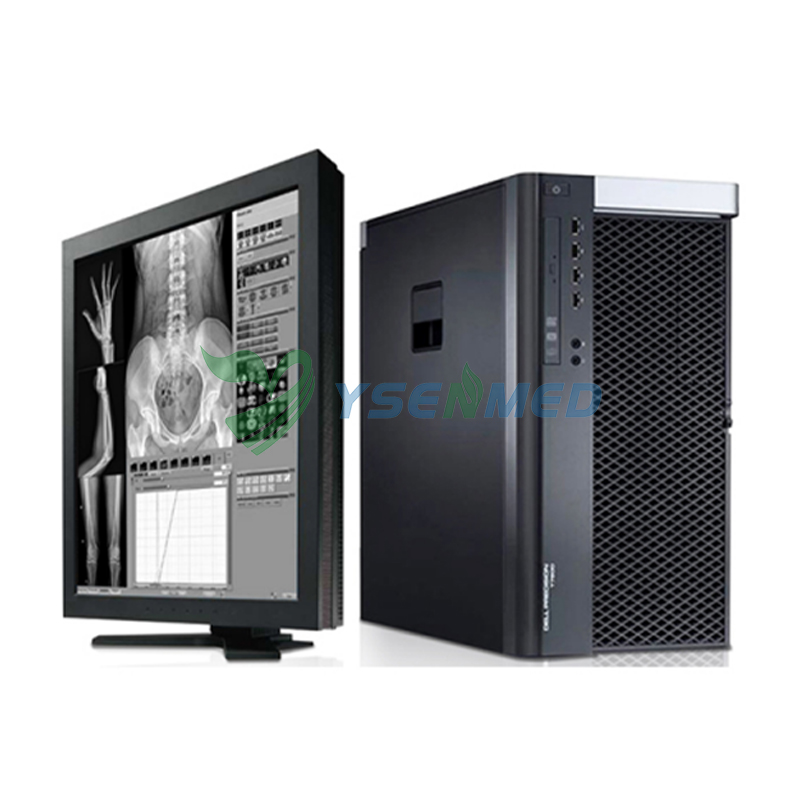

Workstation:
Desktop or laptop computer for choice
