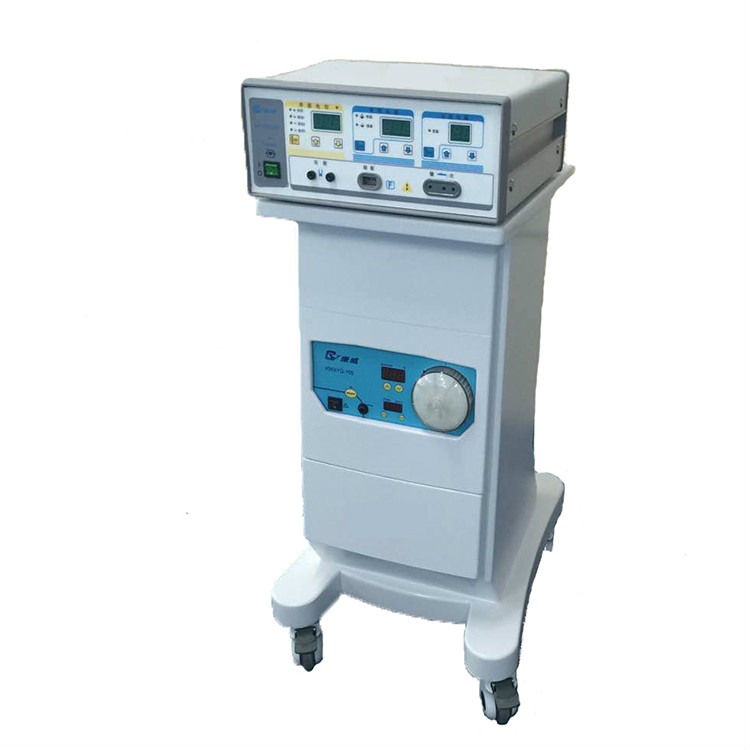

YSESU-LEEP7 LEEP Operation Unit

Item No.: YSESU-LEEP7
A next-gen 200W LEEP unit for precise, controllable gynecologic electrosurgery. Seven modes, smart control, optional smoke evacuation & illuminated pencil.
  • BrandYSENMED
  • Model numberYSESU-LEEP7
  • Warranty1 Year
  • CustomizedAvailable
  • Lead time7 Working Days
  • PackageStandard Package
  • Description

    YSESU-LEEP7 LEEP operation unit


    Main Features
    ■Highest power:200W
    ■Seven working modes: pure cut, blend1, blend2, blend3, spray coag, forced coag, bipolar coag.
    ■Microcomputer control, three-way power output, with different audible and visual indication during the process of outputting.
    ■2000(LEEP) generator adopts LEEP which specializing in gynecological intrauterine event, increasing the accuracy, controllability, security of the surgery.
    ■Dealing with some kinds of pathological changes in obstetric and gynecology,   for example, cutting, electrocoagulation, cervical erosion, and some kinds of surgery that fit in peritoneoscope.
    ■Different electrodes have different effects in coagulation.
    ■An optional smoke evacuation system is available.
    ■Particular illuminating ESU pencil can increase the clarity of wound healing.

    Technical Specifications
    Power: 220V±22V, 50Hz±1Hz(110V±11V,50/60Hz)
    Operating frequency: 416KHz
    Power rating: 1100VA±10
    Seven working modes:
    Mono-polar Cut
    a) pure cut1W200W( Load 800Ω)
    b) Blend11W150W(Load 800Ω)
    c) Blend21W100W (Load 800Ω)
    d) Blend31W80W(Load 800Ω)
    Mono-polar Coag
    e) Spray Coag1W120W( Load 800Ω)
    f) Forced Coag)1W80W( Load 800Ω)
    Bipolar
    g) Bipolar coagulation: 1W50W ( Load 100Ω)
    Power Consumption : ≤880VA(Cutting function 200W)

    Surgical Smoke Evacuation  Parameter
    blowing rate: 100 l/min @ 6mm tube
