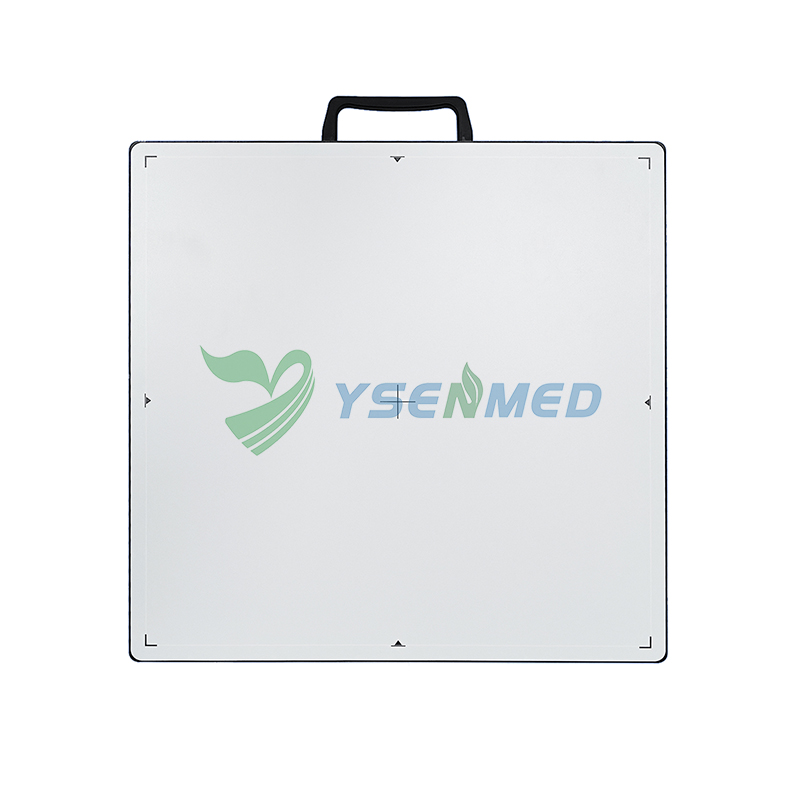

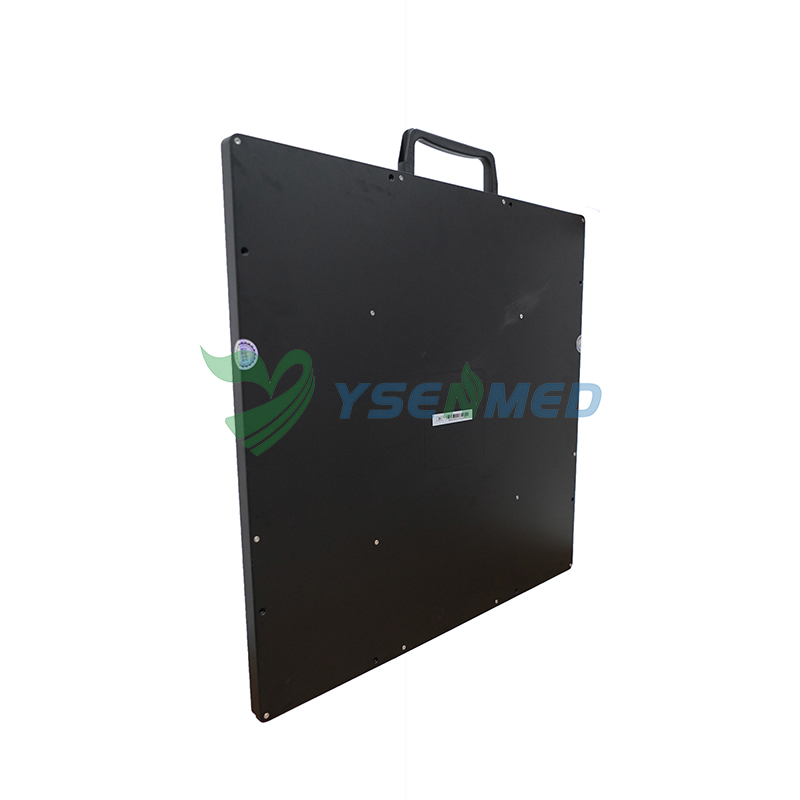

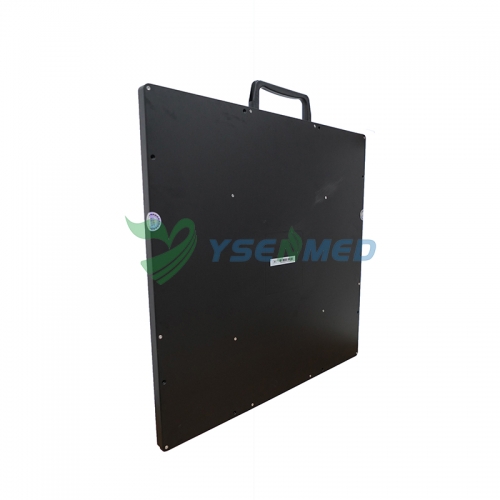

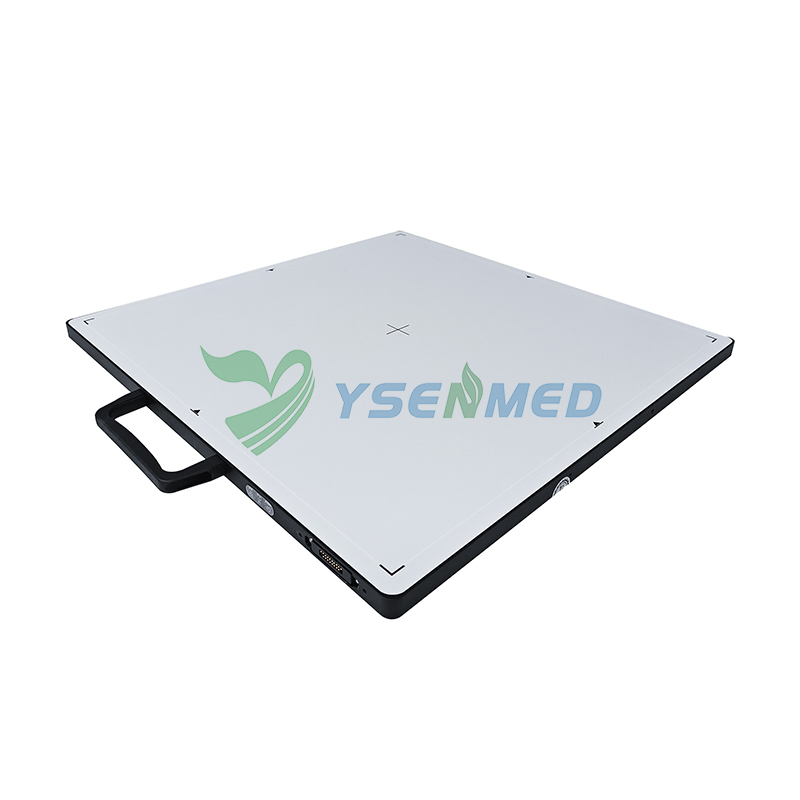

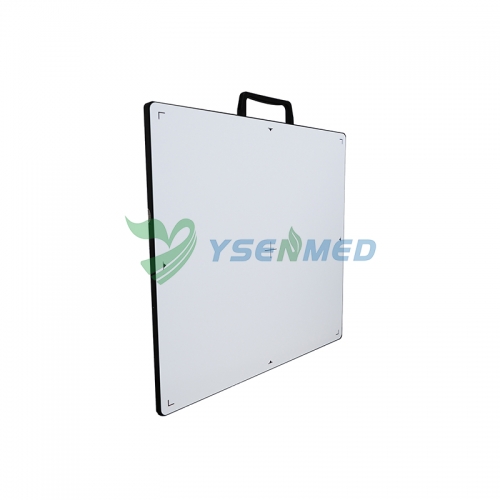

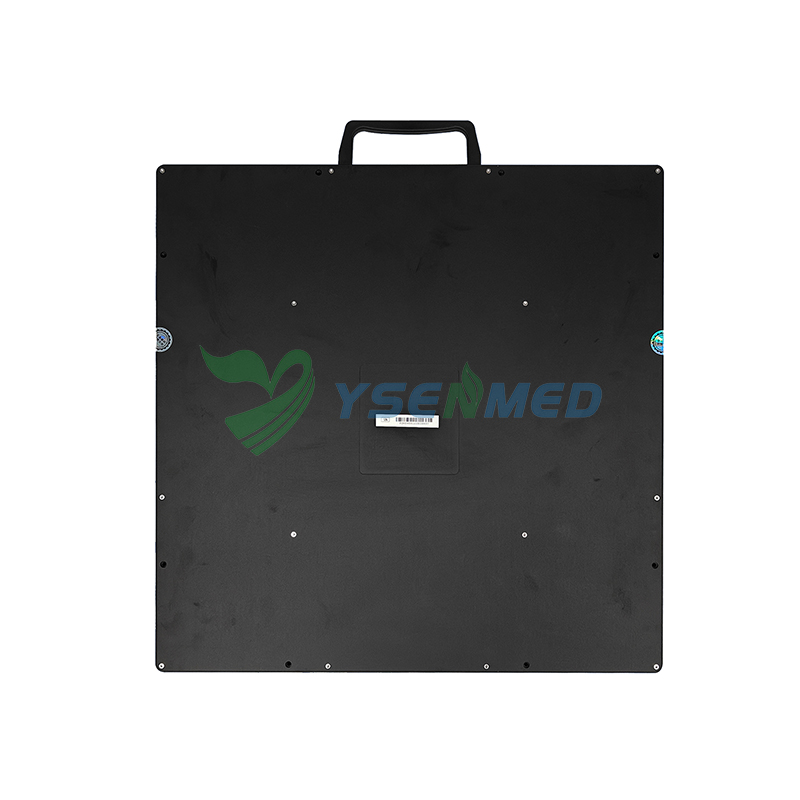

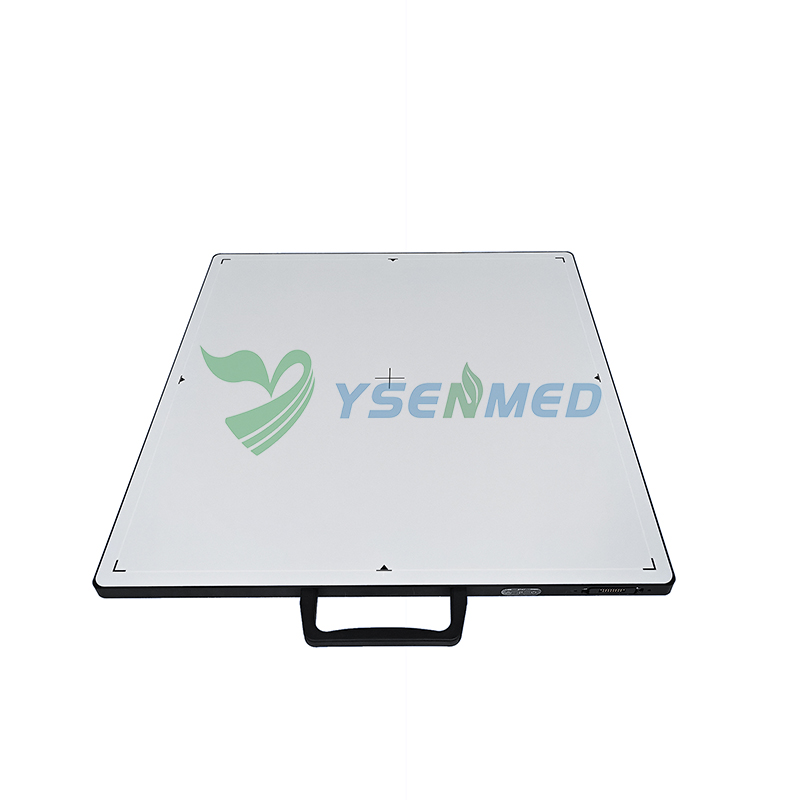

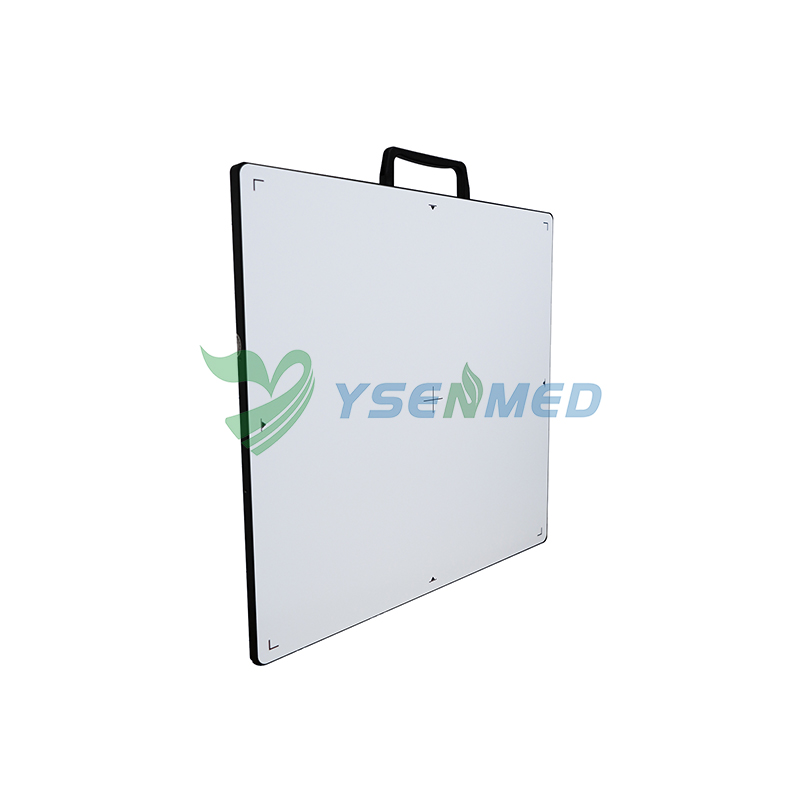

YSENMED Medical Wired Flat Panel Detector YSFPD4343R

Item No.: YSFPD4343R
17x17 inch wired flat panel detector with 139μm pixel, clear high-res imaging, low radiation, fast 1s output, ideal for high-end DR systems.
  • BrandYSENMED
  • Model numberYSFPD4343R
  • Warranty1 Year
  • CustomizedOEM
  • Lead time7-15 Working Days
  • PackageStandard Export Package
  • Description

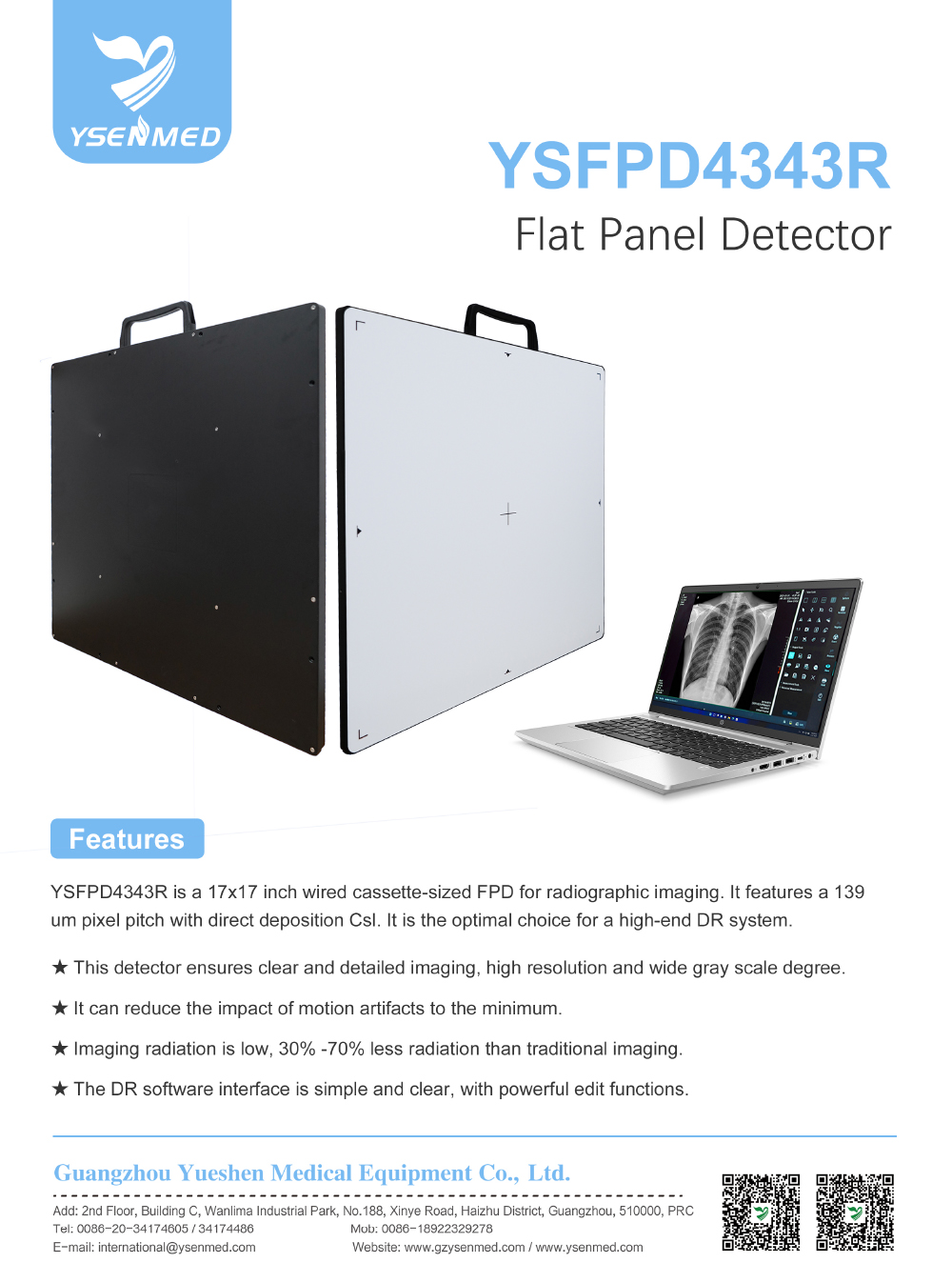

    Features
    YSFPD4343R is a 17x17 inch wired cassette-sized FPD for radiographic imaging. It features a 139um pixel pitch with direct deposition Csl. It is the optimal choice for a high-end DR system.
    This detector ensures clear and detailed imaging, high resolution and wide gray scale degree.
    It can reduce the impact of motion artifacts to the minimum.
    Imaging radiation is low, 30%-70% less radiation than traditional imaging.
    The DR software interface is simple and clear, with powerful edit functions.

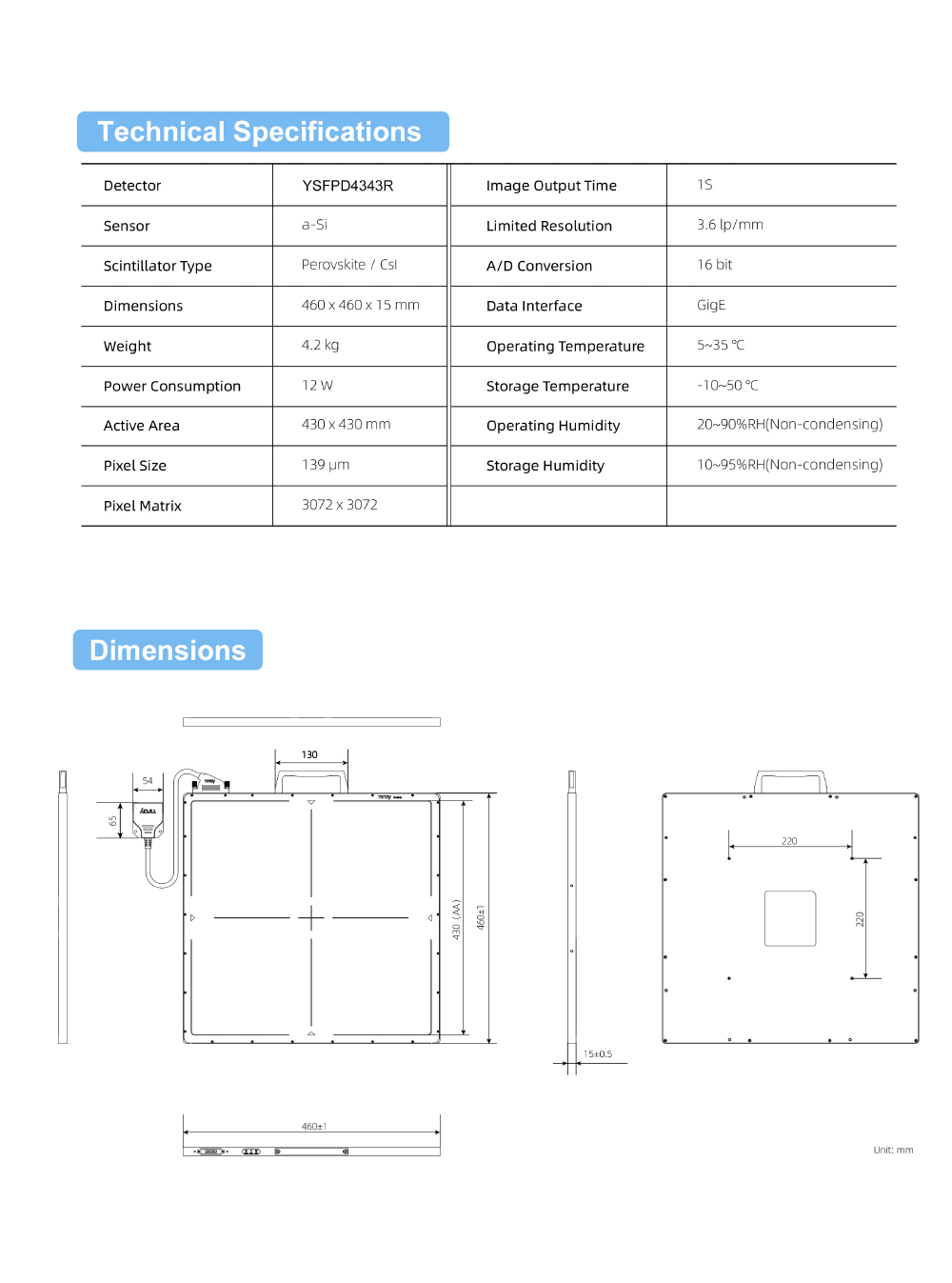

    Technical Specifications
    Detector YSFPD4343R
    Image Output Time 1S
    Sensor a-Si
    Limited Resolution 3.6 lp/mm
    Scintillator Type Perovskite / Csl
    A/D Conversion 16 bit
    Dimensions 460x460x15 mm
    Data Interface GigE
    Weight 4.2 kg
    Operating Temperature 5~35 °C
    Power consumption 12 W
    Storage Temperature -10~50°C
    Active Area 430x430 mm
    Operating Humidity 20~90%RH(Non-condensing)
    Pixel Size 139 μm
    Storage Humidity 10~95%RH(Non-condensing)
    Pixel Matrix 3072 x 3072
