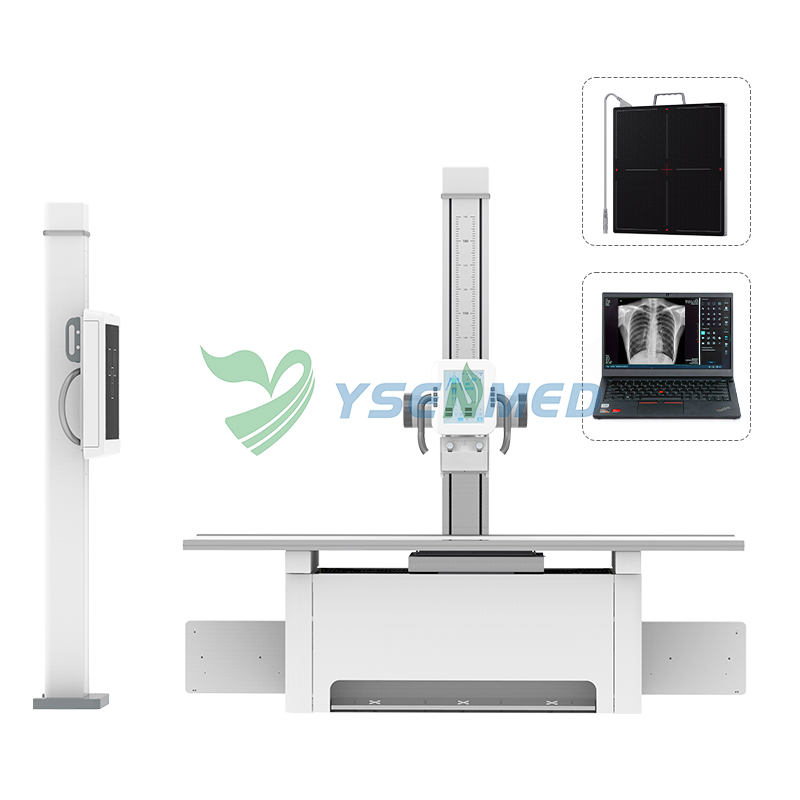

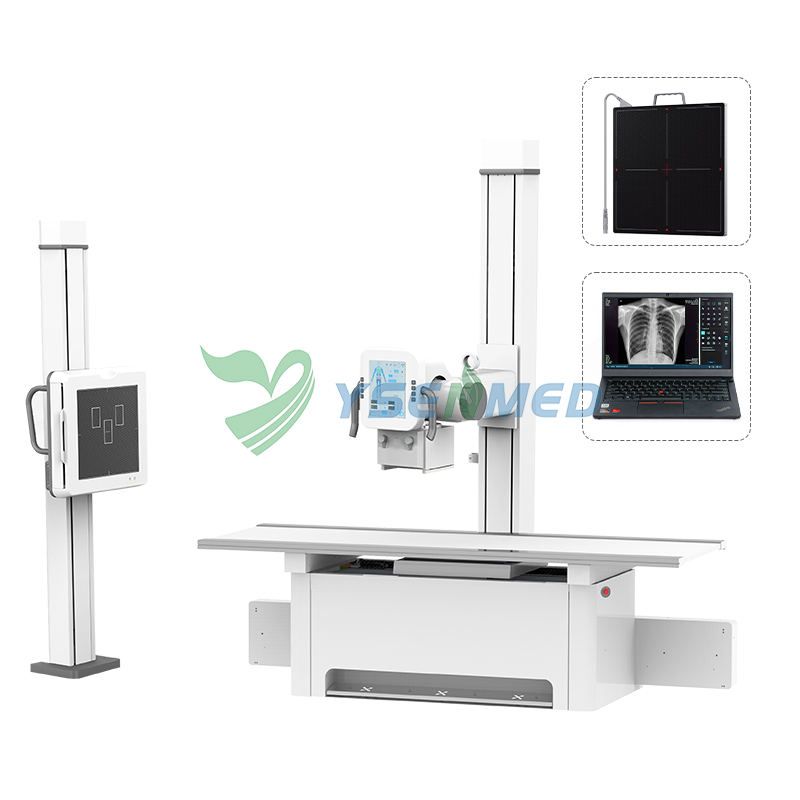

YSF50DR-B2 YSENMED 50kW 630mA Electric Motorized Digital X-ray System

Item No.: YSF50DR-B2
YSF50DR-B2 digital radiography X‑ray system offers 50 kW high‑output imaging, dual‑focus accuracy, and streamlined controls for full‑body exams. An affordable, reliable DR solution for hospitals and clinics.
  • BrandYSENMED
  • Model numberYSF50DR-B2
  • Warranty1 Year
  • CustomizedOEM
  • Lead time7-10 Days
  • PackageStandard Export Package
  • Description

    Introduction
    YSENMED digital radiography x-ray system is a general purpose system which applies to full-body parts radiography. The humanized and user-friendly design makes it easy to operate.With this DR system, YSENMED is committed to making digitalized radiography more accessible and affordable for clinics and hospitals around the world.

    Specifications
    Parameter YSF20DR-B2 YSF32DR-B2 YSF50DR-B2 YSF65DR-B2
    Max.KW 20KW 32KW 50KW 65KW
    Power Supply 50HZ, 60HZ, wire diameter >4mm2, internal resistance<0.52;
    20/32/50kW(220V/380V available), 65kW(only 380V)
    mA 10~250 10~400 10~630 10~800
    mAS 0.1~200 0.1~320 0.4~1000 0.4~1000
    KV 40~125kV, stepping by 1kV 40~150kV, stepping by 1kV
    Exposure Time 0.001~10s adjustable: stepping by 1ms
    Focus Dual focus: 1.0*1.0mm/2.0*2.0mm Dual focus: 0.6*0.6mm/1.2*1.2mm
    Rotating Speed & Heat Capacity 2800prm/1300kHU 2800prm/1300kHU
    Inverter Frequency 50kHZ~220kHZ
    Tube Movement Up & down lift (Electric), left & right rotation
    Column Left & right movable
    Radiography Table Four-way floating
    Bucky Stand Electric up & down (synchronizes with tube up & down movement)
    Detector Size 17*17 inch
    Pixel Resolution 3072*3072
    Pixel Pitch 139μm
    A/D Conversion 16bits
    Spatial Resolution 3.6lp/mm
    Size 460*460*15mm
    Interface Wired (Wireless is optional)
    Software Professional medical software with multi-languages available
    Workstation Intel i5 CPU, 8G memory, 2G card, 128G SSD, PCI-E, R232; 22.5 inch display.
    Other options are available upon request.
