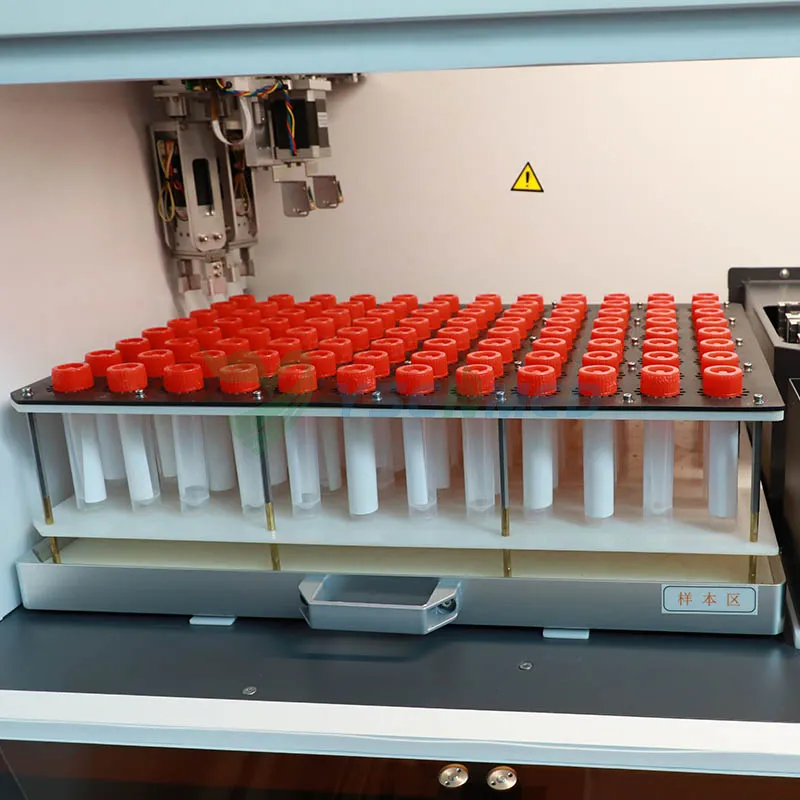

Automated Sample Processing System YSTE-PR96

Item No.: YSTE-PR96
  • BrandYSENMED
  • Model numberYSTE-PR96
  • Warranty1 Year
  • CustomizedAvailable
  • Lead time7 Working Days
  • PackageStandard Package
  • Description
    Features

    Safety: Equipped with double independent, specific anti aerosol cross contamination device, high efficiency ultraviolet disinfection module, external liquid trap tray

    Efficient: 96 samples were processed within 20 minutes, with double manipulator, double sample addition and double screw cover channel

    Convenient: 10.1-inch HD touch screen, user-friendly operation interface, one-click software operation, quick mastery; Pull-out scrap TIP storage box design, more convenient cleaning.

    Compatibility: Compatible with a variety of pipette tips, deep well plates, sampling tubes. (including blood collection tubes) specifications

    Smart: One-key operation, smart dispensation

    Technical Parameter:
    Model
    YSTE-PR96
    Throughput
    1-96
    Processing Time
    96 samples/20min
    Sample Type
    Plasma, serum, whole blood, swab solution and other samples
    Sample Rack
    1pc (compatible with a variety of sampling tubes)
    Robot Arm
    2pcsDispensation arm and Screw cap arm
    Clamping Arm
    2pcs, Independence Movement
    Pipetting Method
    Specific mechanical pipetting fluids
    Plate Position
    3 pcs(Compatible with multi-specification deep-well plates)
    Tip Position
    3 pcs(Including tip waste box position)
    Reagent Rack
    Yes, 4*4 reagent carrier, can hold bullet cryotube

    Protective Function
    Can be used in a biological safety cabinet
    External droplet catch tray design
    With air-tight and anti-drip design
    Liquid Detection
    Pneumatic liquid level detection principle, intelligent detection of blocked needle
    Pipetting Volume
    5-1000ul
    Pipetting Accuracy
    20ul, CV≤2%, Accuracy≤5.0%, 50ul Tip
    1000ul, CV≤0.5%, Accuracy≤1.0%,1000ul Tip
    Power Supply
    Standard: 220V 50/60Hz; optional: 110V 50/60Hz
    Power
    350W
    External Size (W*D*H)
    1180*680*760mm
    Net Weight
    105kg
    Package Size (W*D*H)
    Main instrument: 1293*793*970mm
    Accessory 1: 645*185*440mm
    Accessory 2: 645*185*440mm
    Gross Weight
    Main instrument: 156kg
    Accessory 1: 6.1kg
    Accessory 2: 4kg
