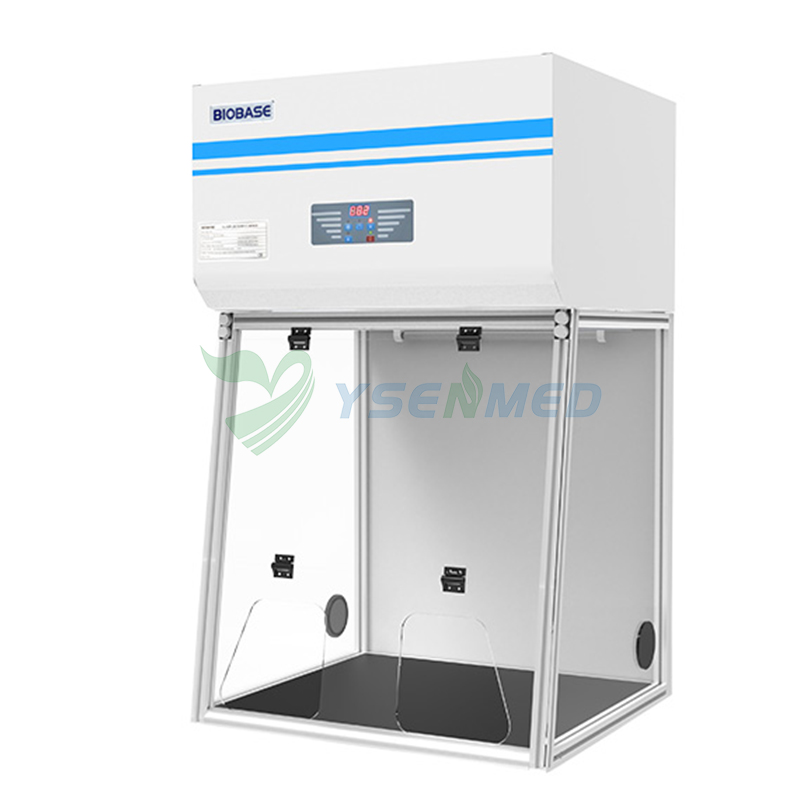

Biobase Fume Hood FH700

Item No.: FH700

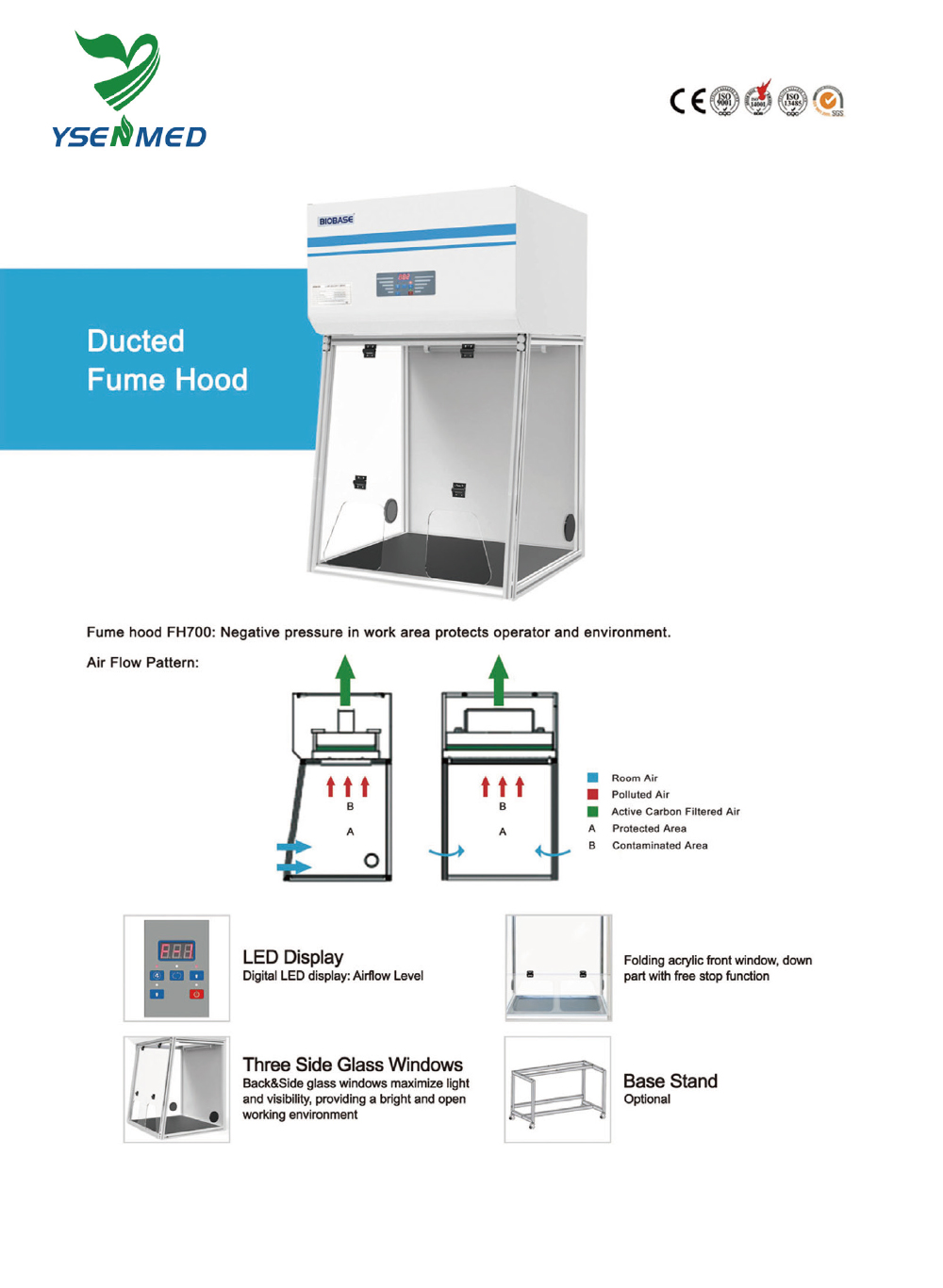

FH700 Ducted Fume Hood: Compact laboratory safety with microprocessor control, LED display, and folding acrylic front window.
  • BrandYSENMED
  • Model numberFH700
  • Warranty1 Year
  • CustomizedAvailable
  • Lead time7 Working Days
  • PackageStandard Package
  • Description
    Introduction:
    In the chemical laboratory, the experimental operation will produce a variety of harmful odor gases, bad smell, moisture and corrosive substances, in order to protect the safety of users and prevent contaminants in the experiment from spreading to the laboratory, the fume hood is used in the vicinity of pollution sources.

    Features:
    1. Folding acrylic front window, down part with free stop function.
    2. Microprocessor control system, LED display.
    3. With memory function in case of power-failure.
    4. Built-in centrifugal blower.
    5. Interlock function: UV lamp and blower, LED lamp.(Only for choosing UV lamp)
    Note: Experiments with strong acids and alkali, flammable or explosive substances cannot be conducted with this type fume hood.

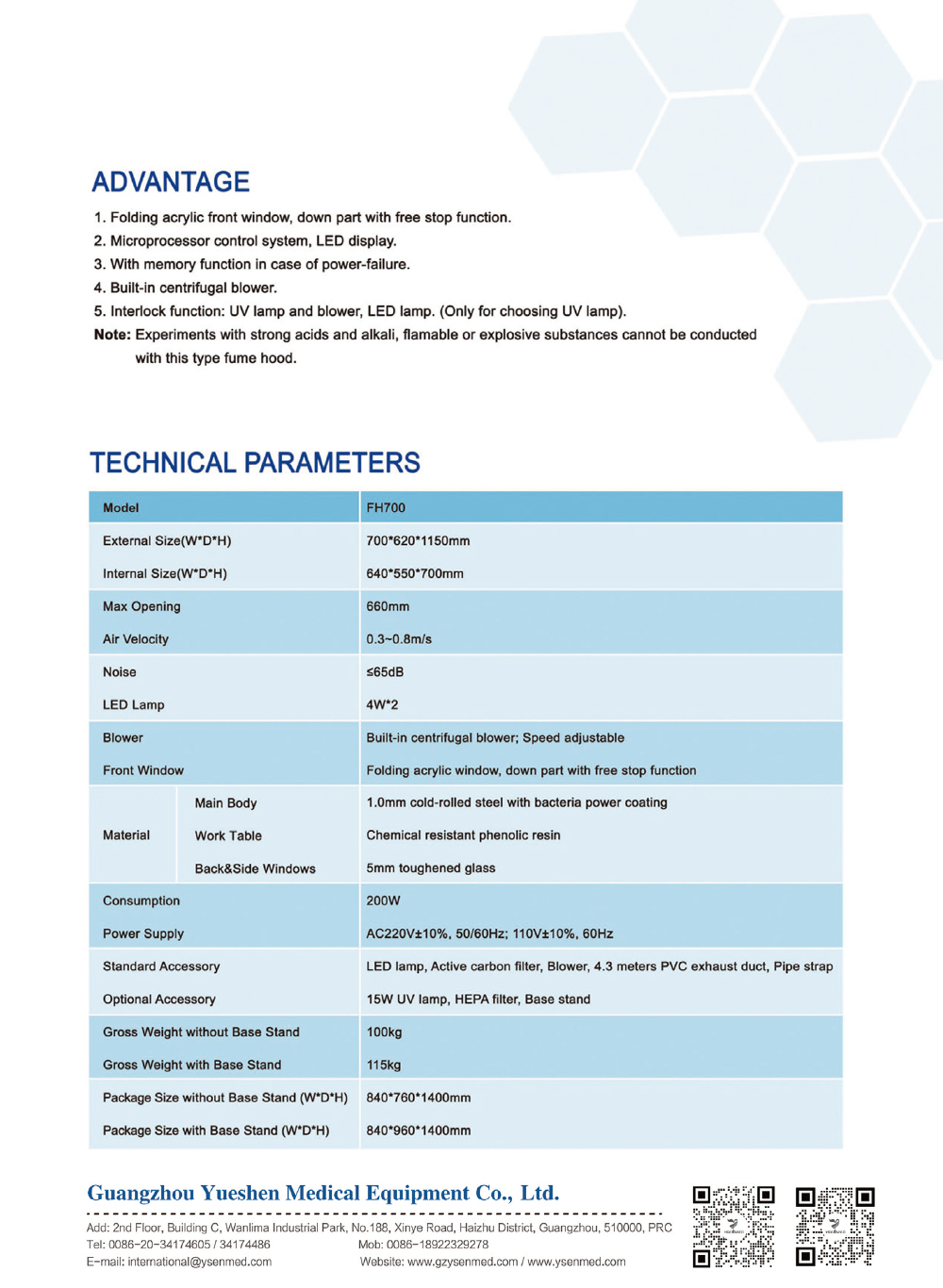

    Technical Parameters:
    Model FH700
    External Size(W*D*H) 700*620*1150mm
    Internal Size(W*D*H) 640*550*700mm
    Max Opening 660mm
    Air Velocity 0.3~0.8m/s
    Noise ≤65dB
    LED Lamp 4W*2
    Blower Built-in centrifugal blower, Speed adjustable
    Front Window Folding acrylic window, down part with free stop function
    Material Main Body 1.0mm cold-rolled steel with bacteria power coating
    Work Table Chemical resistant phenolic resin
    Back&Side Windows 5mm toughened glass
    Consumption 200W
    Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
    Standard Accessory LED lamp, Active carbon filter, Blower, 4.3 meters PVC exhaust duct, Pipe strap
    Optional Accessory 15W UV lamp, HEPA filter, Base stand
    Gross Weight without Base Stand 100kg
    Gross Weight with Base Stand 115kg
    Package Size without Base Stand(W*D*H) 840*760*1400mm
    Package Size with Base Stand(W*D*H) 840*960*1400mm
