Features: 1. 7-inch touch color display screen: Touch operation, real-time, more clear and dynamic display of various values. 2. Power-off memory, restore the state before power-off after power-on, and have visual prompts to alarm. 3. Screen lock function: Touch the screen lock button lightly, and the operation interface is locked to prevent mis-operation and facilitate management. 4. The three side walls of the working area adopt high-quality 304# stainless steel integrated structure, which is easy to clean. 5. The work surface is made of high-quality 304# stainless steel, which is designed in a basin shape and is easy to clean. 6. Convenient front window design, the front window glass can be opened and closed freely, which is convenient for putting in large equipment and cleaning operations. 7. The work surface can be easily lifted or taken out, which is convenient for cleaning and disinfection operations. 8. The magnetic opening and closing design of the transmission window, the interlocking device of the transmission window, and the independent negative pressure cycle structure protect the safety of the operator. 9. The cabinet body and the top of the transfer window are equipped with a pre-filter to effectively prolong the service life of the main filter. 10. The whole machine is equipped with four ULPA ultra-high efficiency filters. 11. The design of butyl rubber gloves has good corrosion resistance, and the replacement of gloves is simple and convenient.

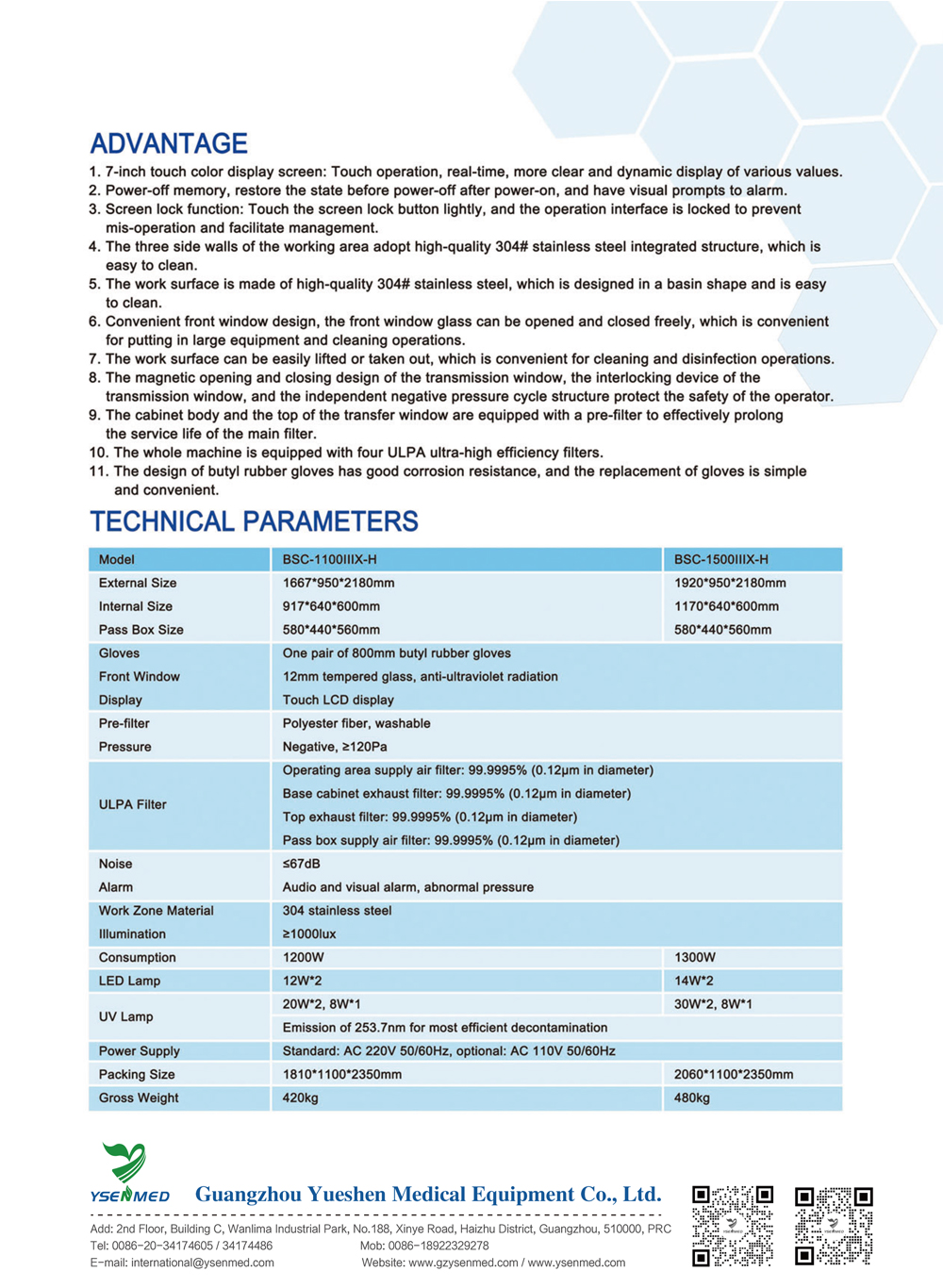

Technical Parameters:
Model
BSC-1100IIIX-H
BSC-1500IIIX-H
External Size
1667*950*2180mm
1920*950*2180mm
Internal Size
917*640*600mm
1170*640*600mm
Pass Box Size
580*440*560mm
580*440*560mm
Gloves
One pair of 800mm butyl rubber gloves
Front Window
12mm tempered glass, anti-ultraviolet radiation
Display
Touch LCD display
Pre-filter
Polyester fiber, washable
Pressure
Negative, ≥120Pa
ULPA Filter
Operating area supply air filter: 99.9995%(0.12μm in diameter) Base cabinet exhaust filter: 99.9995%(0.12μm in diameter) Top exhaust filter: 99.9995%(0.12μm in diameter) Pass box supply air filter: 99.9995%(0.12μm in diameter)
Noise
≤67dB
Alarm
Audio and visual alarm, abnormal pressure
Work Zone Material
304 stainless steel
lllumination
≥1000lux
Consumption
1200W
1300W
LED Lamp
12W*2
14W*2
UV Lamp
20W*2, 8W*1
30W*2, 8W*1
Emission of 253.7nm for most efficient decontamination
