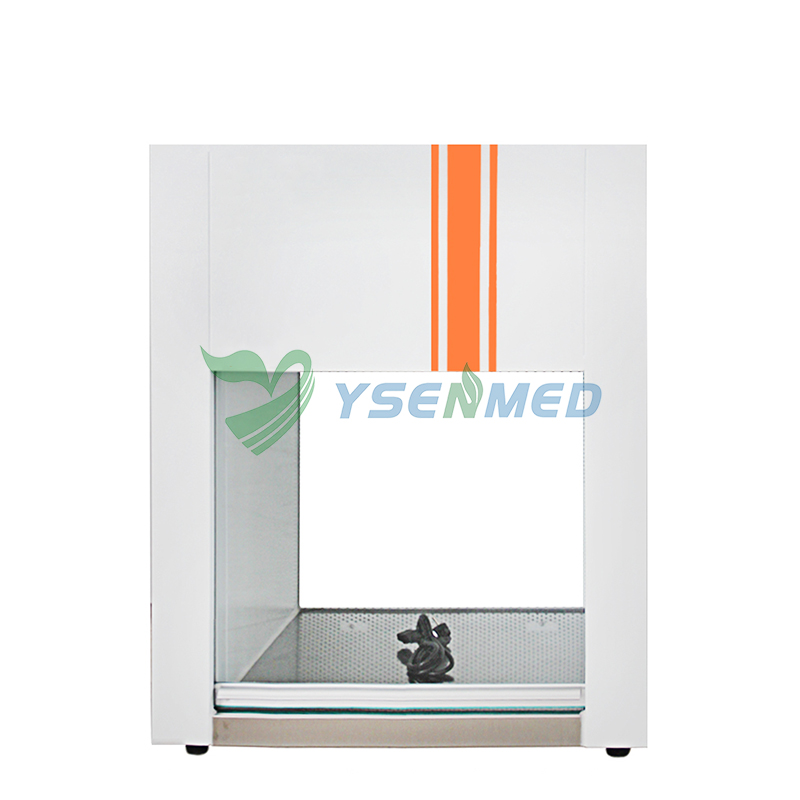

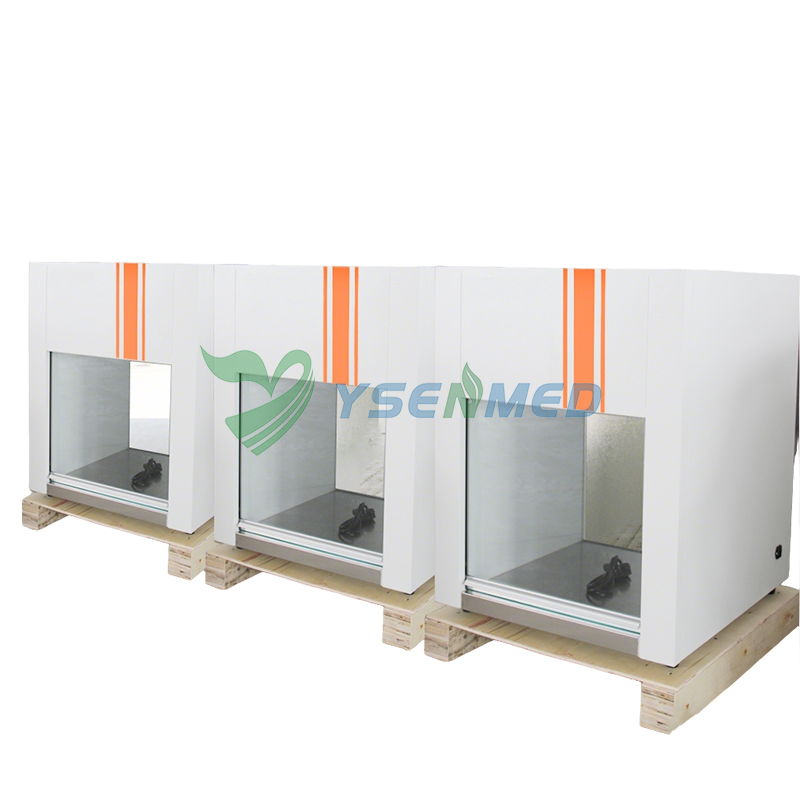

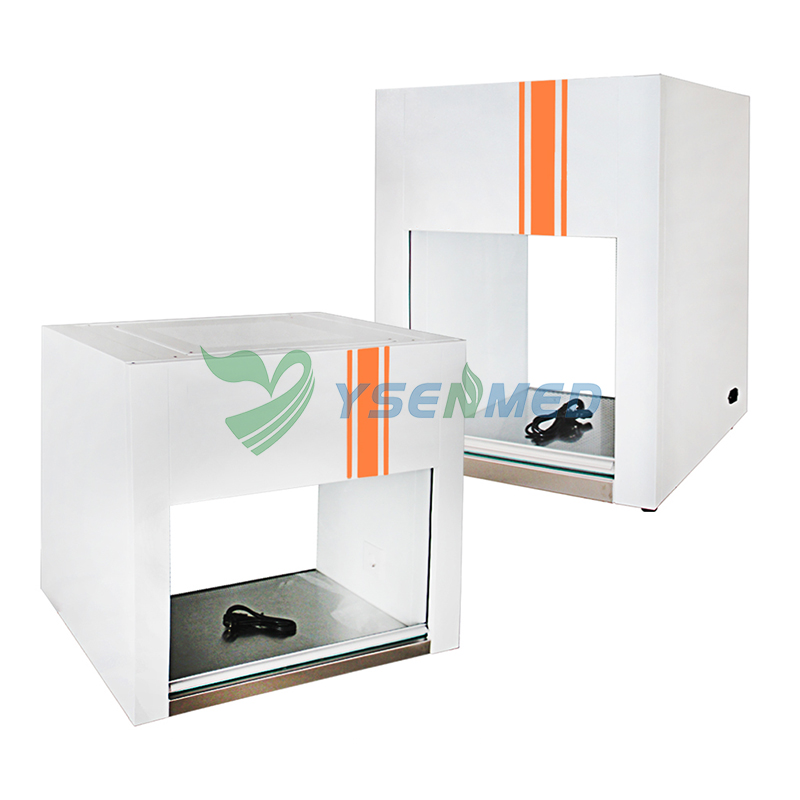

Desktop clean workbench The desk clean bench is a local purification unit used in the aseptic and dust-free clean environment in the fields of medical and health, biological engineering, scientific experiment and so on. product features 1. The whole equipment adopts cold-rolled plate welding, and the surface is electrostatic sprayed. 2. The air supply mode of the equipment is divided into vertical air supply and horizontal air supply, quasi-closed glass damper, which is easy to operate. 3. Small and exquisite, it can be freely placed on the general workbench for operation, which is convenient for use in small studios. 4. The fan system is controlled by a remote switch fast and slow dual speed to ensure that the wind speed in the work area is always in an ideal state.
Technical Parameters
Model parameter
YSTE-VD-650S
YSTE-VD-850 SS
YSTE-HD-650 SS
YSTE-HD-850 SS
Cleanliness level
Class 100@≥0.5μM (US Federal 209E)
Number of colonies
≤0.5pcs/dish·hour (Φ90mm culture plate)
average wind speed
0.25~0.45m/s(Fast and slow)
noise
≤62dB(A)
Vibration half peak
≤5μM(x、y、z direction)
Illuminance
≥300Lx
power supply
AC single-phase 220V/50Hz
Working area
W1×D1×H1
490×490×490
690×490×490
490×350×490
690×350×490
Overall dimension
W×D×H
650×530×850
850×530×850
650×530×850
850×530×850
High efficiency filter specification and quantity
475×410×38×1
675×410×38×1
470×455×38×1
670×455×38×1
Specification and quantity of fluorescent lamp/ultraviolet lamp
5W×1/10W×1
12W×1/20W×1
5W×1/10W×1
12W×1/20W×1
