Medical Digital LED Theatre Lamp with Camera YSOT-LED5070A-TV

Item No.: YSOT-LED5070A-TV

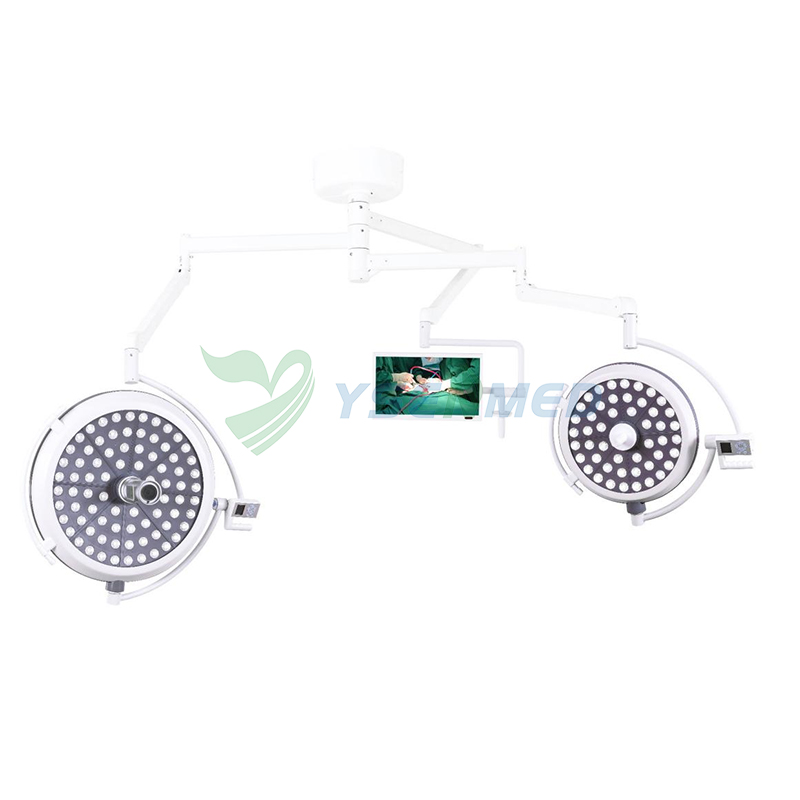

YSOT-LED5070A-TV is a surgical LED light with a mid-mounted HD camera, offering adjustable illumination and color temperature for clear, consistent surgical lighting.

BrandYSENMED

Model numberYSOT-LED5070A-TV

Warranty1 Year

CustomizedAvailable

Lead time7 Working Days

PackageStandard Package

Review

Technical Parameters
1	Specification	YSOT-LED70A	YSOT-LED50A
2	Illuminance（adjustable）	40000-160000Lux	40000-16000Lux
3	Color Temp（Adjustable）	3000K-6700K	3000K-6700K
4	Color rendering Index(Ra)	85-100	85-100
5	Light beam depth	≥400mm	≥400mm
6	Diameter of spot	≥120mm	≥120mm
7	Lamp type	LED	LED
8	Lamp bulb quantity	80 pcs	48 pcs
9	LED lamp power	130VA	130VA
10	LED bulb life	≥50000h	≥50000h
11	Temp rise(Operator head)	﹤1℃	﹤1℃
	Supply voltage	AC220V 50HZ	AC220V 50HZ
Main technical parameters of shadowless lamp camera system
	Technical parameters of surgical camera
1	It has a CMOS sensor of no less than 1/2.8 inch with an effective pixel of no less than 4 million; (provide the national radio and television test report)
2	Full HD central camera system, the lamp disk is the central camera position, the camera is located at the center point of the lamp head, consistent with the lighting area, the field of view is accurately positioned, the body has operation keys, the picture can rotate without turning the shadowless lamp head;
3	The body supports the control panel, and the body adopts the integrated design with the control button, which is not dust accumulation and easy to clean. The body button supports one-click operation such as lens zoom, focus, mode switching, menu display and power switch;
4	Using intelligent brand-name high-definition cameras, the system employs SDI digital signal transmission for real-time video transmission. This prevents video interruptions or delays that can occur in network camera systems, thus avoiding incorrect information. The central and front-end systems are completely isolated to prevent network intrusions caused by network cameras. The cameras must support switching between shadowless mode, normal mode, and strobe mode.
5	Support fast start and low latency function, start time less than 10s, no compressed HD video, built-in ND filter, strong light suppression, no flicker;
6	Designed according to medical electrical standards, the electrical and material characteristics are stable and reliable.
7	Supports the use in different environments such as strong light of shadowless lamp and daily indoor light. It can record open surgery and minimally invasive surgery to meet the needs of hospital teaching;
8	You can choose 2.4G wireless or infrared remote control according to your needs, which is convenient for medical staff to adjust and use.
9	RS485 should be supported to assist the control of the camera; the on/off control can be carried out through the power button of the body to protect patient privacy.
10	Can be connected to the projector, display on a screen of more than 100 inches;
11	Supports remote control, flexible access, RS485 communication interface, VISCA, Pelco P/D and other communication protocols, wall control, joint debugging, digital operating room remote control, through computer or professional operating room controller.
	Record terminal technical parameters (storage and display part)
12	It is equipped with a 22-inch 1080P LCD screen, integrating audio and video access, output, storage, display and local operation functions. The integrated design supports mouse and infrared remote control operation and control; it adopts embedded system architecture technology, stable and efficient operation, and prevents virus infection and hacker attack;
13	Supports 3G-SDI HD video input interface, and supports 4 channels of 1080P HD network video access preview and storage.
14	Adopt high quality AAC audio coding technology, support audio 1 in 1 out, and built-in stereo speakers;
15	Supports external HDMI and VGA monitors to achieve extended display output;
16	Support local U disk direct recording, built-in 1T hard disk storage; support H. 265 efficient compression algorithm, can greatly save storage space;
17	Supports USB3. 0 interface, can realize audio and video recording and copy;
18	Support image setting mosaic video shielding function, patient face, private parts to protect patient privacy;
19	Support full screen, picture in picture, two pictures, three pictures, four pictures, five pictures and other forms of display and recording mode;
20	Support RS485 communication interface, PEICO-P and PEICO-D communication protocols, PTZ control;
21	Supports one-button video recording on the body, and controls the start and stop of video recording by pressing keys;
	Support video/image file retrieval, playback, support video loop coverage; support keyword search, improve the efficiency of retrieval;
Functional Characteristics
11	The new LED cold light source is adopted, the illuminance can reach 4000-160000Lux, which can realize poleless dimming and non-multi-gear adjustment. The color temperature is in the range of 3000K-6700K, stepless dimming is not multi-speed adjustment. At the same time, the light parameters are adjusted according to the needs of different surgeons, so that the surgeons' perception of light is soft and not dazzling.
22	The color rendering index is 85-100, which truly reflects the color of human tissue. It is suitable for various surgical scenes and greatly reduces the visual fatigue caused by long-term operation of medical staff.
33	The original LED luminescent chip is used, and the service life of the chip is up to 50,000 hours.
44	The temperature rise of the surgeon’s head was less than 1℃ to avoid tissue drying due to rapid blood coagulation in the wound due to temperature rise, which would affect the operation.
55	The lampshade shell is made of high quality aluminum, the surface adopts high voltage electrostatic spraying process, the use of imported environmental protection antibacterial plastic powder, to ensure that the product meets the requirements of surgical hygiene, the surface is matte, no glare.
66	The intermediate disinfection handle can be disassembled at will, and the temperature is 121℃, which is convenient for high temperature and high pressure steam sterilization.
Parts packing list
NO	Item			Quantity/ Unit
1	YSOT-LED70A head			1 SET
2	YSOT-LED50A head			1 SET
3	Rotating arm + fixing base			1 SET
4	Balance Arm			2 SET
5	Switching power supply			2 Unit
6	Sterilizer handle			2 SET
7	Large shield			1 SET
8	Shroud Base			1 SET
9	Mid-mounted camera			1 SET
10	Recording terminal (all-in-one)			1 SET
11	certificate of conformity			1 Piece
	Manual book			1 Piece
