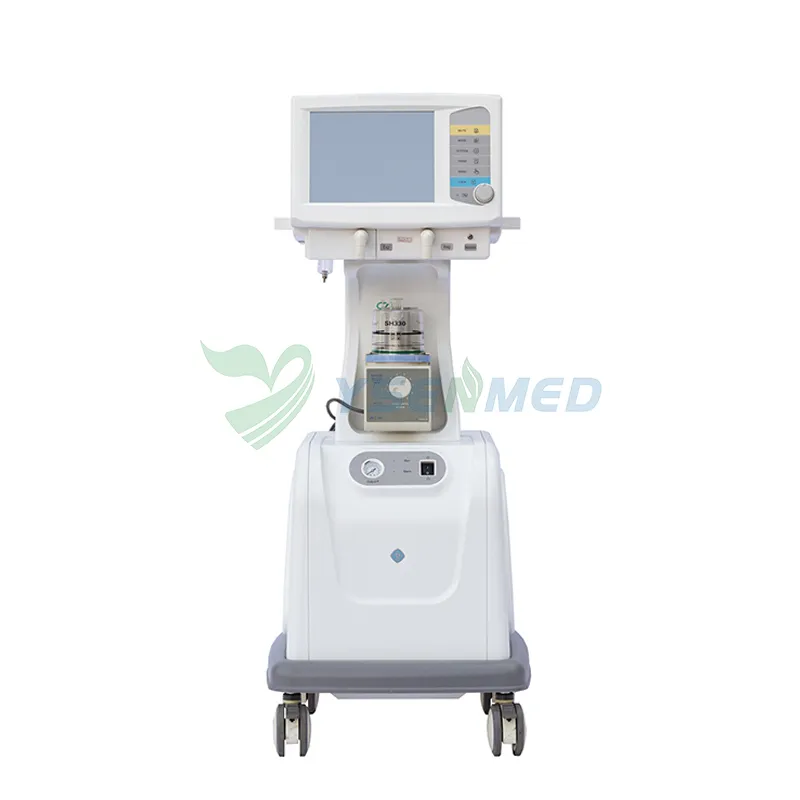

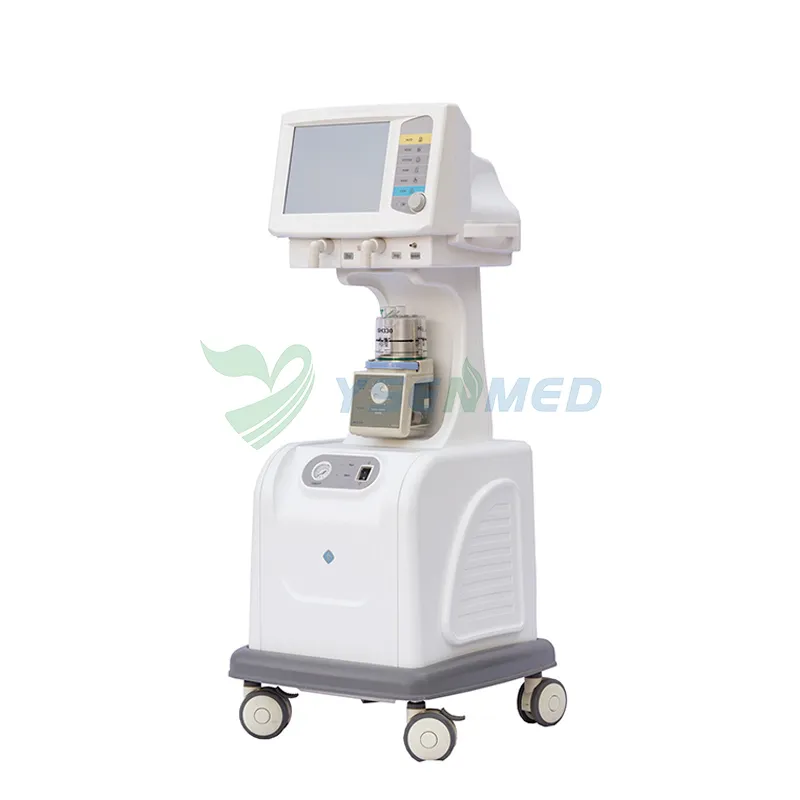

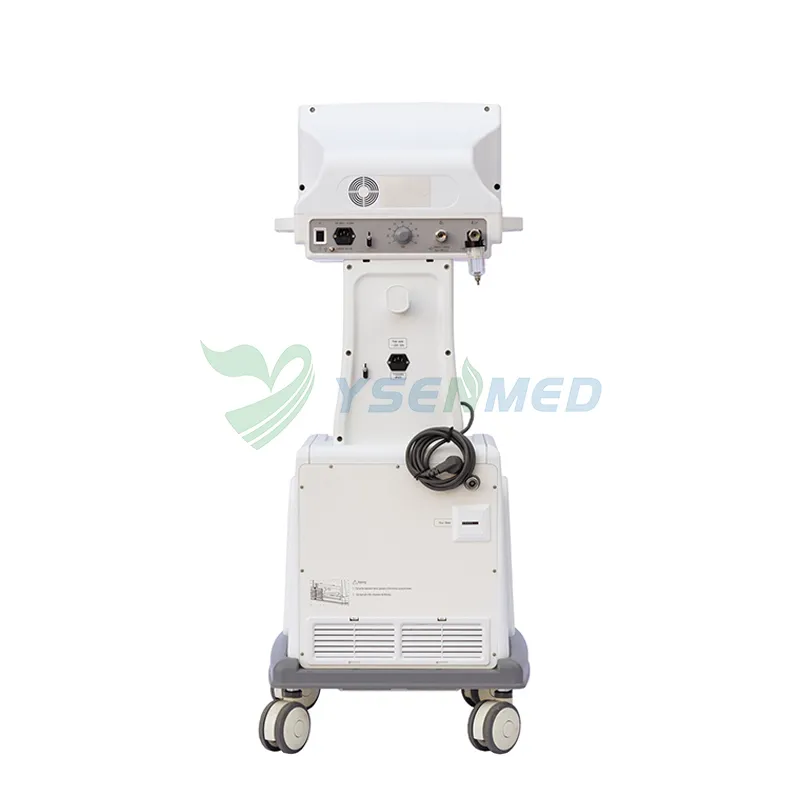

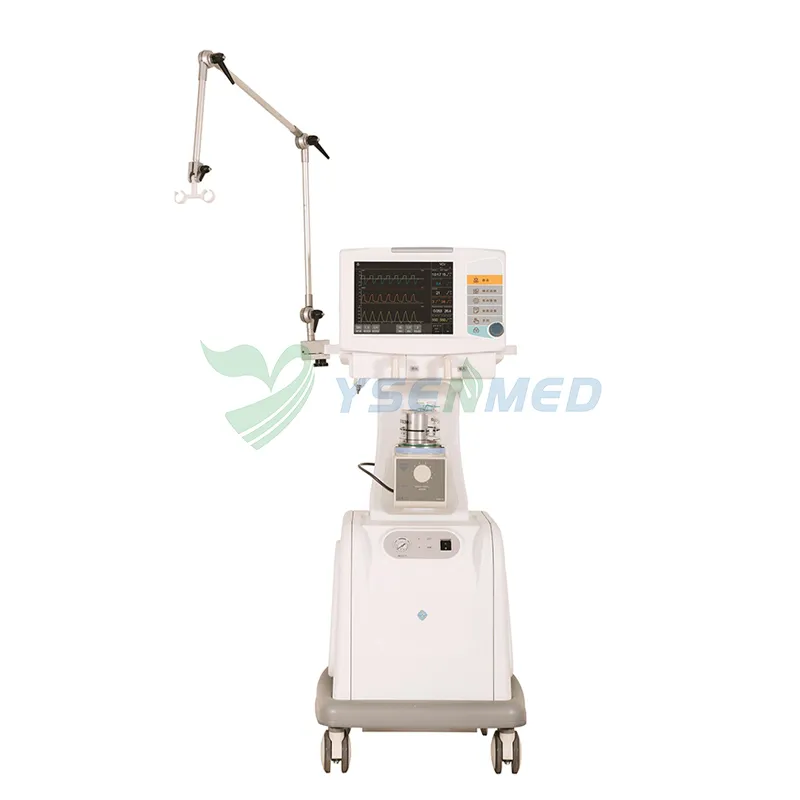

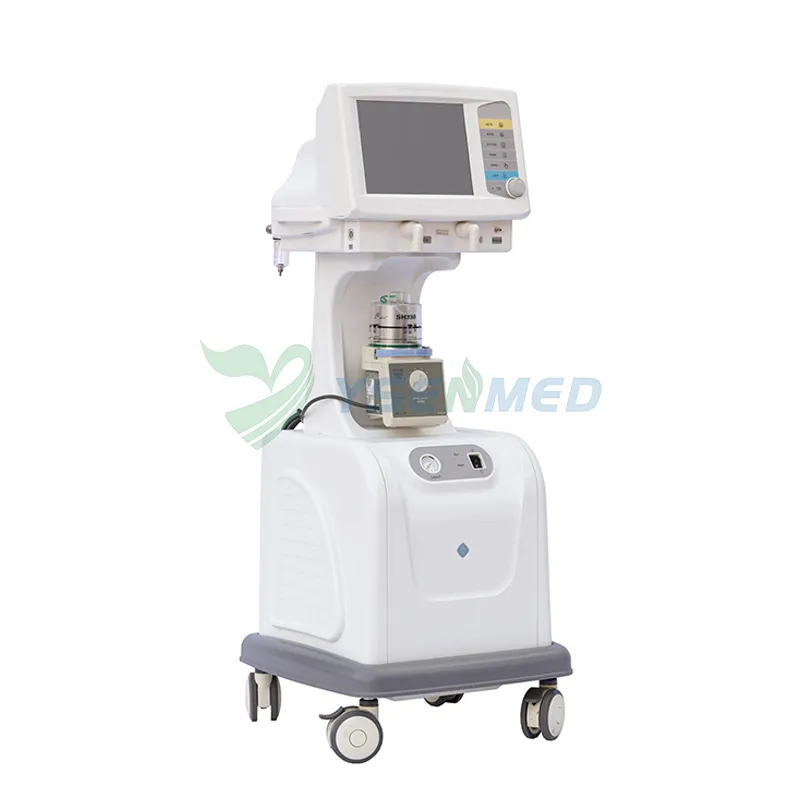

YSAV3010 Medical ICU Respirator Ventilator

Item No.: YSAV3010
12.1” touch screen medical ventilator for adult, pediatric & infant use. Multi‑mode invasive/non‑invasive support, auto‑calibration & exhaust self‑wash.
  • BrandYSENMED
  • Model numberYSAV3010
  • Warranty1 Year
  • CustomizedAvailable
  • Lead time15 working days
  • PackageStandard Export Package
  • Description
    Features:
    1.12.1 inch touch screen with desirable color schemes
    2.The simplest interface boots a precise control and convenient operation
    3.Applied for adult, pediatric and infant
    4.Multi-mode ventilation function(VCV, SIMV, SIMV/PSV, PSV, PCV, APRV, APNEA, CPAP, BIPAP, Manual, SIGH)
    5.Applied with Invasive ventilation and Non-invasive ventilation
    6.Advanced air compressor for air input
    7.Self testing and calibration function
    8.Auto-wash for exhaust valve
    9.Assistant Nebulization treatment
    10.High flow oxygen remedy

    Technical Specifications
    Physical Specifications
    Dimensions: 45*55*140cm
    Weight: 65kg
    Casters: Front wheels with lock
    Screen: 12.1 inch touch screen
    Display: Colour LCD sreen
    Display graphics: waveforms of P-T, F-T, V-T
    Loops: P-V, F-V,F-P
    Pipeline Supply
    Gas configuration: O2, Air
    Pipeline input range: 280-600kpa

    Air Compressor Specifications:
    Power: AC 220V+/-10%, 50Hz+/-2%
    Output pressure: 0.4+/-0.1 mpa
    Noise: ≤50dB

    Battery Power
    Battery Type: Lead-acid 12v, 4Ah
    Run-time: Typical 180 mins+

    Ventilator Specifications:
    Modes of ventilation: VCV, APNEA, SIMV, SIMV/PSV, MANUAL, CPAP, PSV,PCV, BIPAP, SIGH, ARPV,NIV

    Ventilator Parameter
    Tidal volume range: 20-2000ml
    Pressure range: 5-80cmH2O
    Respiration rate range: 10-100bpm(1-40bpm under SIMV)
    Inspiration time: 0.2-12s
    Pressure control/Pressure support: 0-80cmH2O
    Inspiration plateau: off, 1-50%
    SIGH: off, 1-5/100
    Oxygen concentration: 21-100%
    Ptrigger range: -20-20cmH2O(based on PEEP)

    PEEP
    Type: Integrated, Electronic control
    Range: off, 3-40cmH2O

    Parameter monitoring:
    Vti, Vte, Ppeak, Pmean, Pplateau, PEEP, NIF, Flow I Max, Flow E Max, FrepT, FrepSp, FrepM, MVsp, MVleak, Vtrdeep, Ptrideep, RVR(RSBI), Ri,Rex,Cs,Cdyn,WOB,RCexp,FiO2,CO2(optional)


    Alarm Limits
    Visual/Audio:
    No tidal volume, MV, Paw, FiO2 limitation O2,Air failure, AC power failure, backup low

    Pre-setting Funtions:
    Language: English
    Self-test: AUTOMATIC

    Typical function:
    Auxiliary suction function: optional
    O2 remedy: Up to 60L/min(optional)
    Nebulization

    Environment Conditions:
    Operation Temp: 5-40℃
    Storage Temp: -10℃-+40℃
    Humidity: ≤80%
    Atmosphere pressure: 960hpa-1040hpa
