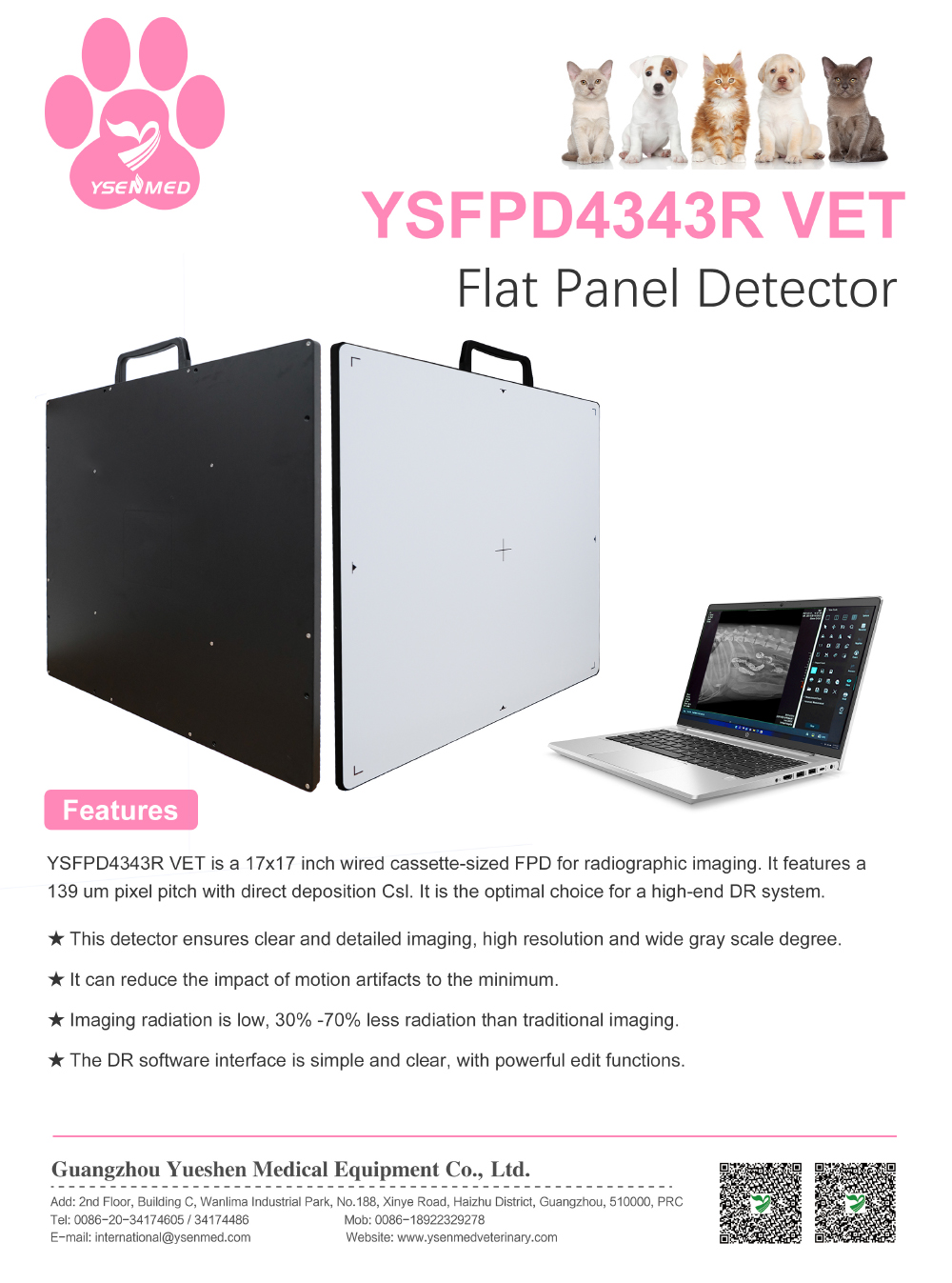

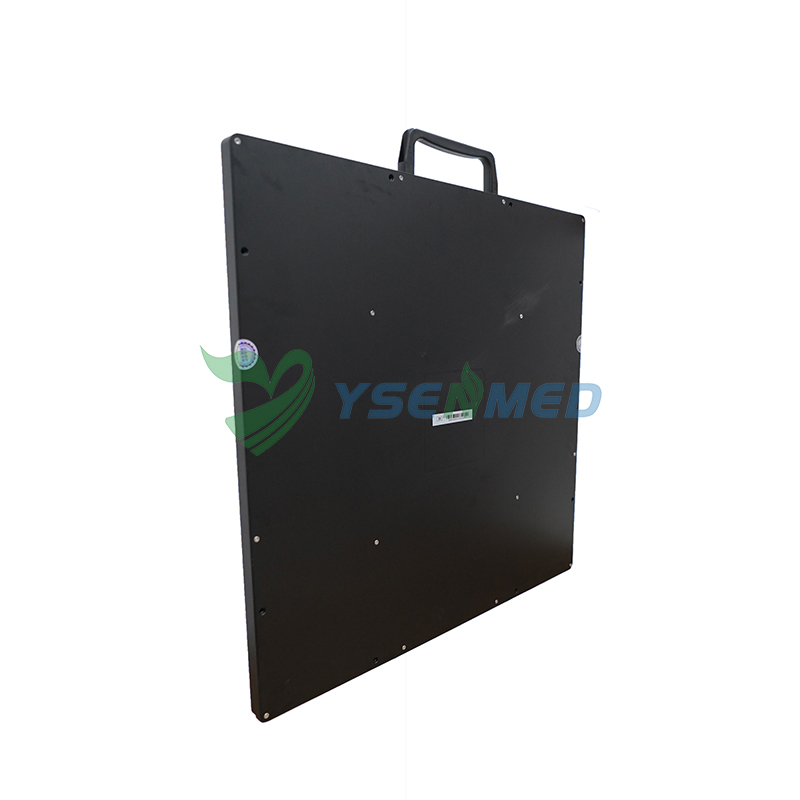

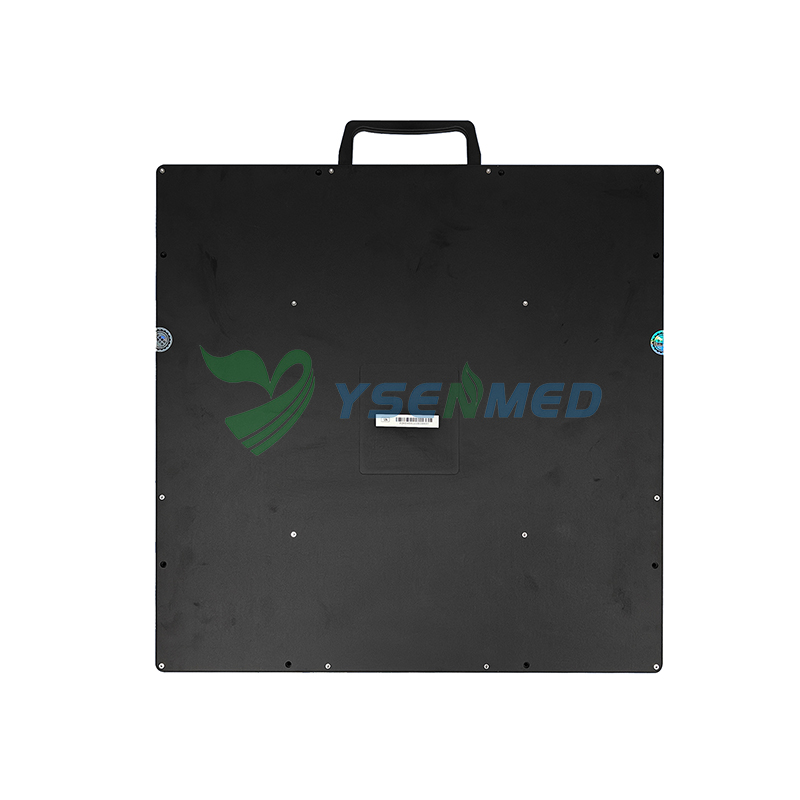

Features YSFPD4343R VET is a 17x17 inch wired cassette-sized FPD for radiographic imaging. It features a139 um pixel pitch with direct deposition Csl. It is the optimal choice for a high-end DR system. This detector ensures clear and detailed imaging, high resolution and wide gray scale degree. It can reduce the impact of motion artifacts to the minimum. Imaging radiation is low, 30%-70% less radiation than traditional imaging. The DR software interface is simple and clear, with powerful edit functions.

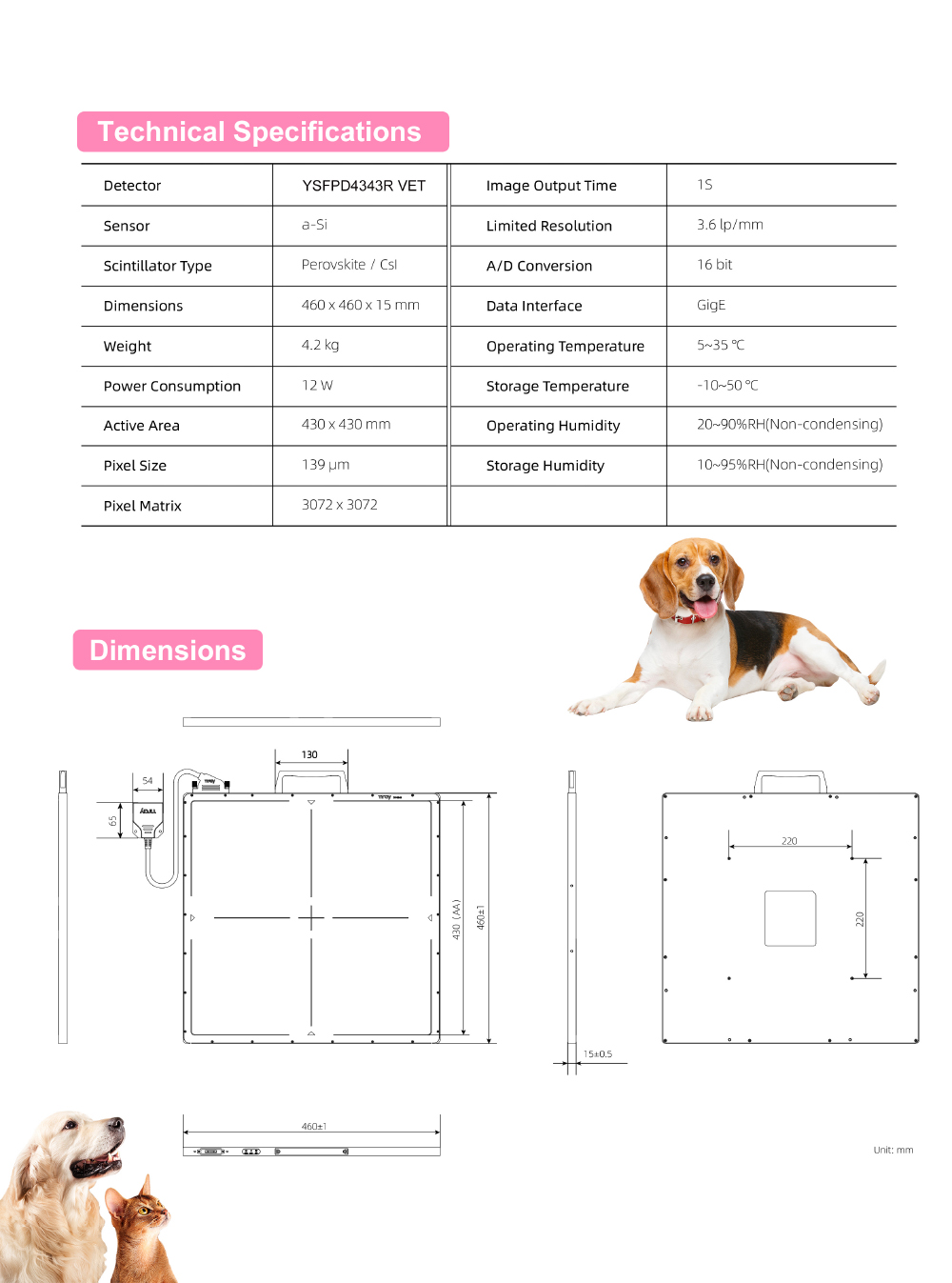

Technical Specifications
Detector
YSFPD4343R VET
Image Output Time
1S
Sensor
a-Si
Limited Resolution
3.6 lp/mm
Scintillator Type
Perovskite / Csl
A/D Conversion
16 bit
Dimensions
460x460x15 mm
Data Interface
GigE
Weight
4.2 kg
Operating Temperature
5~35 °C
Power consumption
12 W
Storage Temperature
-10~50°C
Active Area
430x430 mm
Operating Humidity
20~90%RH(Non-condensing)
Pixel Size
139 μm
Storage Humidity
10~95%RH(Non-condensing)
Pixel Matrix
3072 x 3072
